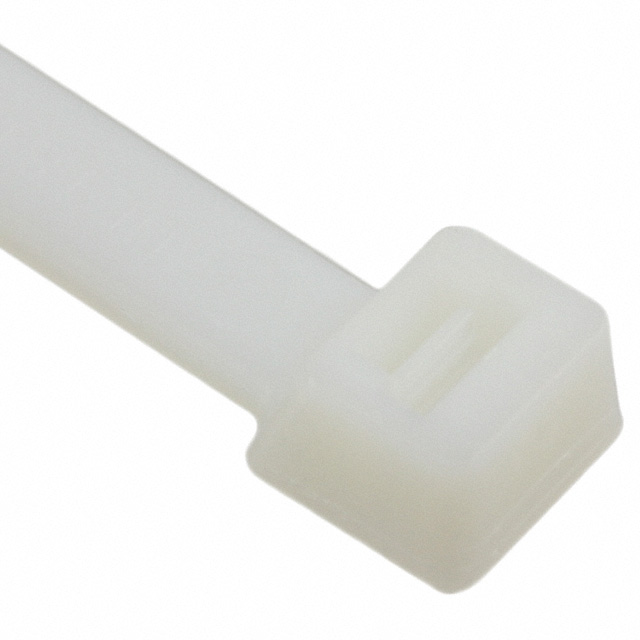

CT24NT175-L

Active

3M (TC)

CABLE TIE, HEAVY DUTY, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 610 MM, 8.6 MM, 183 MM, 175 LB

Search across all available documentation for this part.

Active

3M (TC)

CABLE TIE, HEAVY DUTY, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 610 MM, 8.6 MM, 183 MM, 175 LB

Technical Specifications

Parameters and characteristics for this part

Specification	CT24NT175-L

Bundle Diameter	182.88 mm
Bundle Diameter	7.2 in
Color	Natural
Length - Actual [x]	2 ft
Length - Actual [x]	609.6 mm
Length - Approximate	24 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tensile Strength	175 lbs
Tensile Strength	79.4 kg
Width	8.64 mm
Width	0.34 in
Wire/Cable Tie Type	Standard, Locking

Part	Shelf Life Start	Color	Length - Approximate	Wire/Cable Tie Type	Material	Tensile Strength	Tensile Strength	Length - Actual [x]	Length - Actual [x]	Bundle Diameter	Bundle Diameter	Shelf Life	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Mounting Type	Width	Width
3M (TC) CT24BK175-L	Date of Manufacture	Black	24 in	Locking Standard	Polyamide (PA66) Nylon 6/6	175 lbs	79.4 kg	2 ft	609.6 mm	182.88 mm	7.2 in	60 Months	UV Resistant	27 °C 80 °F	10 °C	Free Hanging (In-Line)	8.64 mm	0.34 in
3M (TC) CT24NT175-L	Date of Manufacture	Natural	24 in	Locking Standard	Polyamide (PA66) Nylon 6/6	175 lbs	79.4 kg	2 ft	609.6 mm	182.88 mm	7.2 in	60 Months		27 °C 80 °F	10 °C	Free Hanging (In-Line)	8.64 mm	0.34 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard, Locking Natural 7.20" (182.88mm) 0.340" (8.64mm) 175 lbs (79.40 kg)
