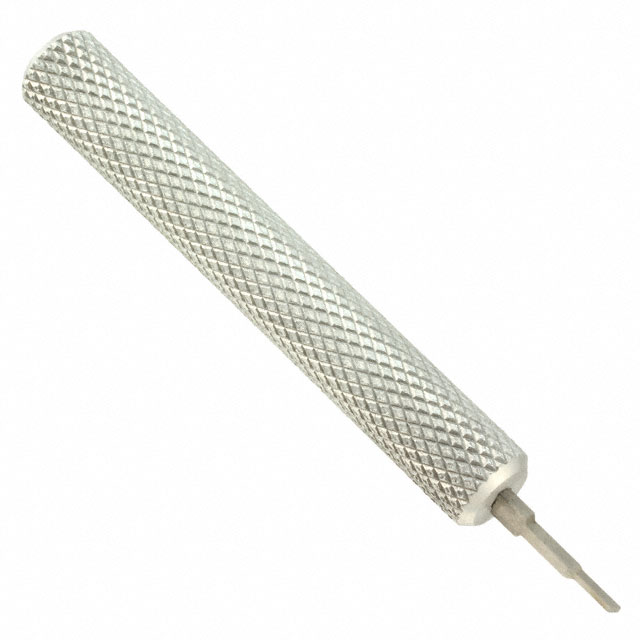

565-280-301

Active

EDAC Inc.

EJECTION TOOL

Search across all available documentation for this part.

Active

EDAC Inc.

EJECTION TOOL

Technical Specifications

Parameters and characteristics for this part

Specification	565-280-301

For Use With/Related Products	Rectangular Contacts
Tool Type	Insertion/Extraction Tool

Part	For Use With/Related Products	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Method
EDAC Inc. 565-280-301	Rectangular Contacts	Insertion/Extraction Tool
EDAC Inc. 565-280-753K	Rectangular Contacts	Applicator for Bench Press	20 AWG	28 AWG	Automated
EDAC Inc. 565-280-752K	Rectangular Contacts	Applicator for Bench Press	20 AWG	28 AWG	Automated
EDAC Inc. 565-280-754G	Rectangular Contacts	Applicator for Bench Press	20 AWG	28 AWG	Automated
EDAC Inc. 565-280-751	Rectangular Contacts	Applicator for Bench Press	20 AWG	28 AWG	Automated
EDAC Inc. 565-280-752G	Rectangular Contacts	Applicator for Bench Press	20 AWG	28 AWG	Automated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insertion/Extraction Tool For Rectangular Contacts
