Q-1U00Q0005001M

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE JK-JK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U00Q0005001M

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE JK-JK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U00Q0005001M

1st Connector	HD-BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-1U00Q0 Series

Part	2nd Connector	Length	Length	Length	Style	2nd Connector Mounting Feature	1st Contact Gender	Frequency - Max [Max]	Color	Features	2nd Connector Mounting Type	1st Connector	Overall Impedance	Cable Type	1st Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-1U00Q00032.5M	N-Type Jack	8.2 '	98.4 in	2.5 m	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Black	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-174	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U00Q0003.75M	N-Type Jack		29.53 "	750 mm	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Black	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-174	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U00Q0003002M	N-Type Jack	6.6 ft	78.7 in	2 m	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Black	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-174	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U00Q0003.25M	N-Type Jack				HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Black	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-174	Free Hanging (In-Line)	Female	9.843 "	250 mm
Amphenol Custom Cable Q-1U00Q0005.25M	N-Type Jack				HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Copper	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-316	Free Hanging (In-Line)	Female	9.843 "	250 mm
Amphenol Custom Cable Q-1U00Q0003009i	N-Type Jack		9 "	228.6 mm	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Black	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-174	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U00Q0005003i	N-Type Jack		3 in	76.2 mm	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Copper	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-316	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U00Q0003012i	N-Type Jack		12 "	304.8 mm	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Black	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-174	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U00Q0005001M	N-Type Jack	3.3 ft	39.4 in	1 m	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Copper	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-316	Free Hanging (In-Line)	Female
Amphenol Custom Cable Q-1U00Q0005036i	N-Type Jack		36 in	91.44 cm	HD-BNC to N-Type	Bulkhead - Front Side Nut	Female	6000 MHz	Copper	Shielded	Panel Mount	HD-BNC Jack	50 Ohms	RG-316	Free Hanging (In-Line)	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 198.63
		25	$ 194.82
		50	$ 191.01
		100	$ 187.20
		250	$ 183.39

Description

General part information

Q-1U00Q0 Series

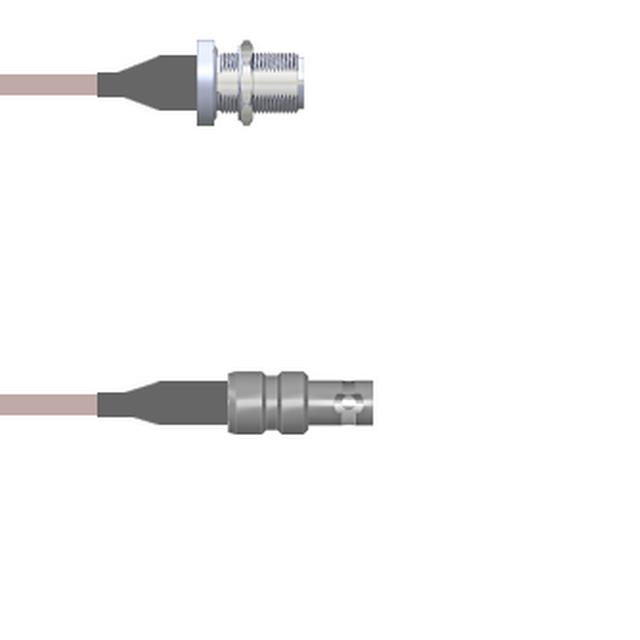

Cable Assembly Coaxial HD-BNC to N-Type RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
