MMBT3906FZ-7B

Active

Diodes Inc

TRANSISTOR GP BJT PNP 40V 0.2A 3-PIN DFN T/R

Search across all available documentation for this part.

Active

Diodes Inc

TRANSISTOR GP BJT PNP 40V 0.2A 3-PIN DFN T/R

Technical Specifications

Parameters and characteristics for this part

Specification	MMBT3906FZ-7B

Current - Collector (Ic) (Max) [Max]	200 mA
Current - Collector Cutoff (Max) [Max]	50 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	280 MHz
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-XFDFN
Power - Max [Max]	435 mW
Qualification	AEC-Q101

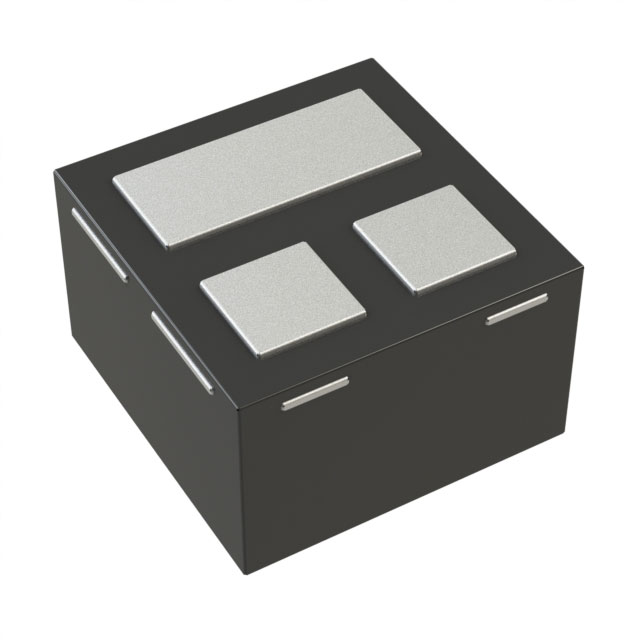

Supplier Device Package	X2-DFN0606-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	400 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	40 V

PNP, 40V, 0.2A, DFN0606-3

Part	Qualification	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Supplier Device Package	Grade	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Frequency - Transition
Diodes Inc MMBT3906LP-7	AEC-Q101	400 mV	200 mA	50 nA	100	PNP	X1-DFN1006-3	Automotive	3-UFDFN	-55 °C	150 °C	Surface Mount	40 V	250 mW	300 MHz
Diodes Inc MMBT3906-7	AEC-Q101	400 mV	200 mA		100	PNP	SOT-23-3	Automotive	SC-59 SOT-23-3 TO-236-3	-55 °C	150 °C	Surface Mount	40 V		250 MHz
Diodes Inc MMBT3906FZ-7B	AEC-Q101	400 mV	200 mA	50 nA	100	PNP	X2-DFN0606-3	Automotive	3-XFDFN	-55 °C	150 °C	Surface Mount	40 V	435 mW	280 MHz
Diodes Inc MMBT3906-7-F	AEC-Q101	400 mV	200 mA		100	PNP	SOT-23-3	Automotive	SC-59 SOT-23-3 TO-236-3	-55 °C	150 °C	Surface Mount	40 V		250 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PNP, 40V, 0.2A, DFN0606-3
