SATEL-VL53L4CX
ActiveBREAKOUT BOARD EMBEDDING THE VL53L4CX TIME-OF-FLIGHT SENSOR WITH EXTENDED RANGE MEASUREMENT
Deep-Dive with AI
Search across all available documentation for this part.
SATEL-VL53L4CX
ActiveBREAKOUT BOARD EMBEDDING THE VL53L4CX TIME-OF-FLIGHT SENSOR WITH EXTENDED RANGE MEASUREMENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SATEL-VL53L4CX |
|---|---|
| Embedded | Yes, MCU |
| Sensing Range | 6 m |
| Sensor Type | Light, 3D Time-of-Flight (ToF) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VL53L4CX |
| Voltage - Supply [Max] | 3.5 V |
| Voltage - Supply [Min] | 2.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SATEL-VL53L4CX Series

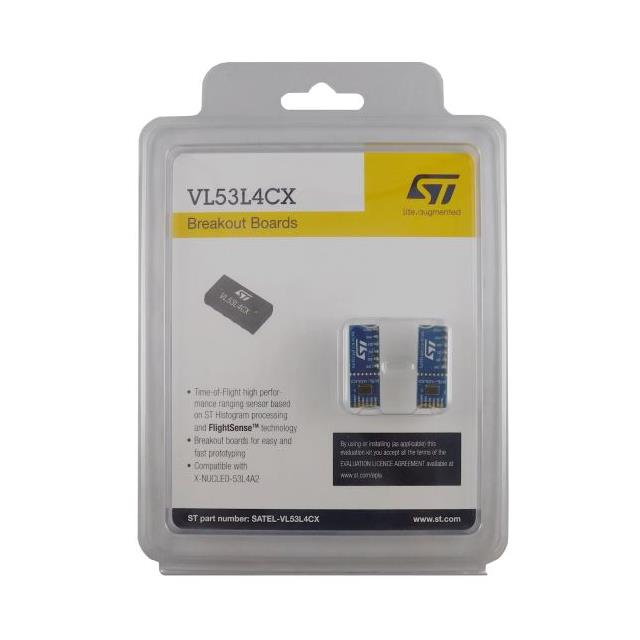

The SATEL-VL53L4CX package includes two breakout boards, which can be easily integrated into the customer's devices.
The PCB section that embeds the VL53L4CX module is perforated. The developers can then break off the mini-PCB and use it in a 3.3 V supply application via flying wires.
This makes it easier to integrate the SATEL-VL53L4CX breakout boards into the development and evaluation devices thanks to their small size.
