8623 0601000

Active

Belden Inc.

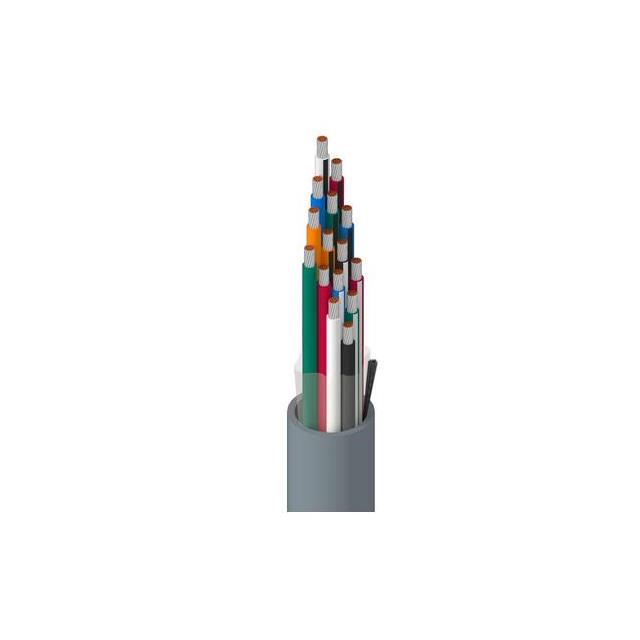

CABLE 15COND 16AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 15COND 16AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8623 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	17.63 mm
Jacket (Insulation) Diameter [diameter]	0.694 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.06 in
Jacket (Insulation) Thickness	1.524 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	600 V
Wire Gauge	16 AWG

Part	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Number of Conductors	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Conductor Material	Jacket Color	Usage
Belden Inc. 8623 0601000	Multi-Conductor	Poly-Vinyl Chloride (PVC)	17.63 mm	0.694 in	19 Strands	29 AWG	16 AWG	0.06 in	1.524 mm	600 V	15	Poly-Vinyl Chloride (PVC)	-20 C	80 C	1000 ft	304.8 m	Copper Tinned	Chrome	Audio Control Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 25.01

General part information

15 Conductor Multi-Conductor Cable Chrome 16 AWG 1000.0' (304.8m)
