HW1B-M1F10-G

Active

IDEC Corporation

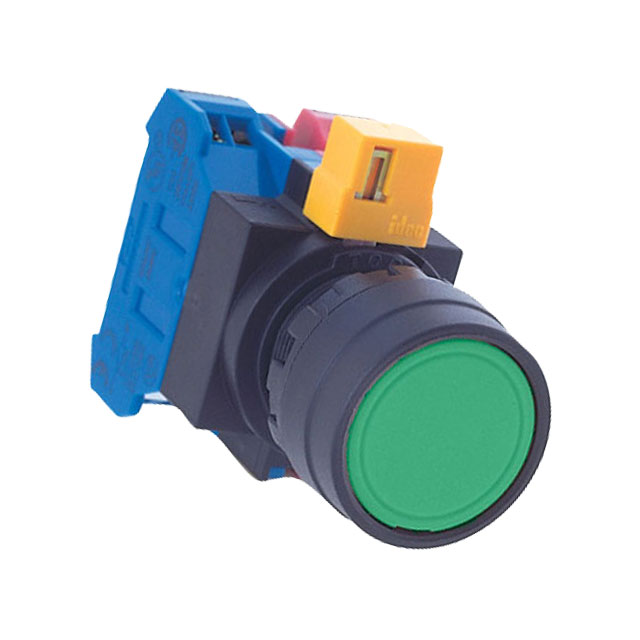

INDUSTRIAL PUSHBUTTON SWITCH, HW SERIES, 22.3 MM, SPST-NO, MOMENTARY, ROUND, GREEN

Search across all available documentation for this part.

Active

IDEC Corporation

INDUSTRIAL PUSHBUTTON SWITCH, HW SERIES, 22.3 MM, SPST-NO, MOMENTARY, ROUND, GREEN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switches 22mm Momentary Pushbutton Yel

Technical documentation and resources

Specification	HW1B-M1F10-G	HW1B Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NC, SPST-NO
Color - Actuator/Cap	Green	Blue, Green
Current Rating (Amps)	8 A, 10 A	8 - 10 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Reset Operation	-	Twist
Switch Function	Off-Mom	On-Off, Off-Mom
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	110 V	110 V
Voltage Rating - DC	24 V	24 V

Part	Panel Cutout Dimensions [diameter]	Ingress Protection	Circuit	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Reset Operation	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Type	Actuator Marking	Mechanical Life	Color - Actuator/Cap	Actuator Type
IDEC Corporation HW1B-M1F01-B
IDEC Corporation HW1B-M1P02Y
IDEC Corporation HW1B-V4F01-R	22.3 mm	IP65 - Dust Tight, Water Resistant	SPST-NC	Screw Terminal	On-Off	50 °C	-25 °C	Panel Mount, Front	Twist	24 V	110 V	8 A, 10 A
IDEC Corporation HW1B-M1F10-S	22.3 mm	IP65 - Dust Tight, Water Resistant	SPST-NO	Screw Terminal	Off-Mom	50 °C	-25 °C	Panel Mount, Front		24 V	110 V	8 A, 10 A	Standard	No Marking	5000000 Cycles	Blue	Button, Flush, Round
IDEC Corporation HW1B-M1F10-G	22.3 mm	IP65 - Dust Tight, Water Resistant	SPST-NO	Screw Terminal	Off-Mom	50 °C	-25 °C	Panel Mount, Front		24 V	110 V	8 A, 10 A	Standard	No Marking	5000000 Cycles	Green	Button, Flush, Round
