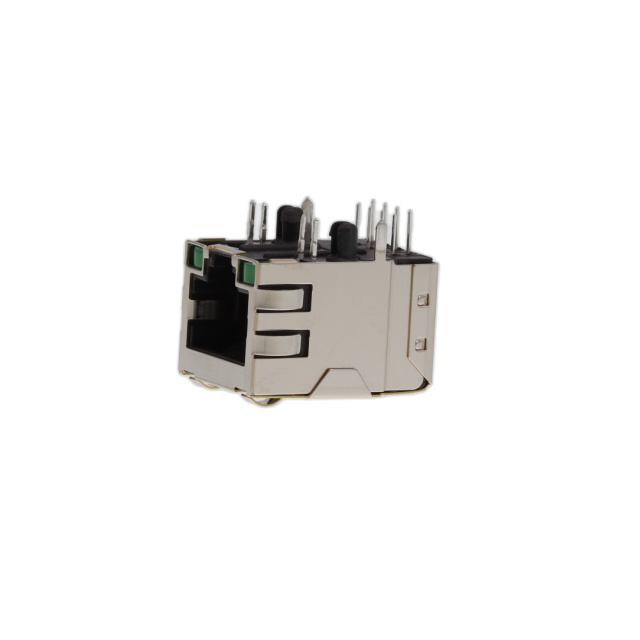

6-6605403-1

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	6-6605403-1

Applications	10/100 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Decoupling Capacitance, Board Guide
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Green - Green
Mounting Type	Through Hole
Number of Cores per Jack	5
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Applications	Connector Type	Number of Ports	LED Color	Features	Height Above Board [z]	Height Above Board [z]	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Tab Direction	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Termination	Mounting Type	Contact Finish	Number of Cores per Jack	Contact Material	Shielding	Shield Material
TRP Connector B.V. 6-6605403-1	10/100 Base-T	RJ45	1	Green - Green	Board Guide Decoupling Capacitance	14.1 mm	0.555 in	Polyester Polyethylene Terephthalate (PET)	50 µin	1.27 µm	1	Down	70 °C	0 °C	90 °	Solder	Through Hole	Gold	5	Phosphor Bronze	Shielded EMI Finger	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Port RJ45Through Hole 10/100 Base-T
