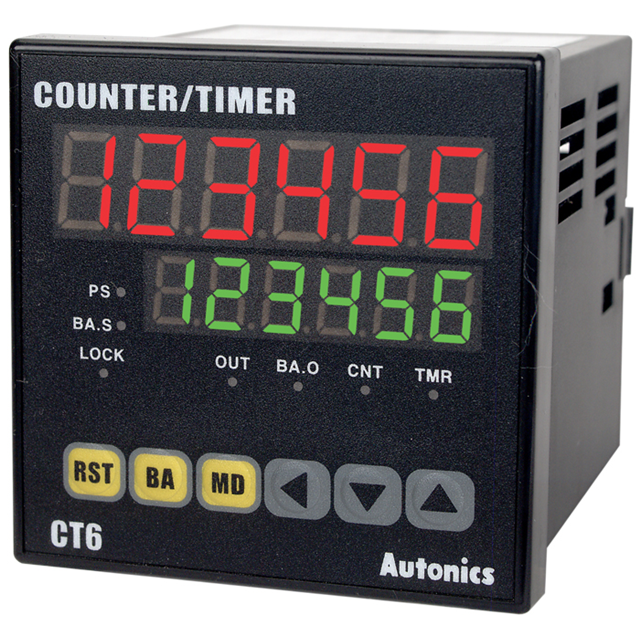

CT6M-2P2

Active

AUTONICS

COUNTER TIMER 24VAC/24-48VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT6M-2P2

Active

AUTONICS

COUNTER TIMER 24VAC/24-48VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 195.00

Description

General part information

CT6M Series

Batch, Preset, Tachometer, Timer, Totalizer 24VAC, 24 ~ 48VDC Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT6M-2P2	CT6M Series

Count Rate	Multiple	Multiple
Display Characters - Height	9 mm, 13 mm	9 - 13 mm
Display Characters - Height	0.354 in, 0.512 in	0.354 - 0.512 in
Display Type	LED - Green, Red Characters	LED - Green, Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Input Type	No Voltage, Voltage	No Voltage, Voltage
Number of Characters Per Row	6	6
Number of Characters Per Row	6	6
Operating Mode	Up, Down	Up, Down
Output Type	-	Relay, Solid State
Output Type [custom]	Relay (2), Solid State (2)	Relay (2), Solid State (2)
Panel Cutout Dimensions [x]	68 mm	68 mm
Panel Cutout Dimensions [y]	68 mm	68 mm
Reset	External, Front Panel	External, Front Panel
Termination Style	Screw Terminal	Screw Terminal
Time Format	Multiple	Multiple
Type	Tachometer, Timer, Preset, Batch, Totalizer	Tachometer, Timer, Preset, Batch, Totalizer
Voltage - Supply	24 VAC	24 VAC
Voltage - Supply [Max]	48 V	48 - 240 VAC
Voltage - Supply [Min]	24 V	24 - 100 VAC

CT6M Series

COUNTER TIMER 100-240VAC

Part	Operating Mode	Termination Style	Input Type	Output Type	Number of Characters Per Row	Number of Characters Per Row	Display Type	Ingress Protection	Type	Display Characters - Height	Display Characters - Height	Voltage - Supply [Min]	Voltage - Supply [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Reset	Time Format	Count Rate	Output Type [custom]	Voltage - Supply
AUTONICS CT6M-1P4T	Down, Up	Screw Terminal	No Voltage, Voltage	Relay, Solid State	6	6	LED - Green, Red Characters	IP65 - Dust Tight, Water Resistant	Batch, Preset, Tachometer, Timer, Totalizer	9 mm, 13 mm	0.354 in, 0.512 in	100 VAC	240 VAC	68 mm	68 mm	External, Front Panel	Multiple	Multiple
AUTONICS CT6M-2P4T	Down, Up	Screw Terminal	No Voltage, Voltage		6	6	LED - Green, Red Characters	IP65 - Dust Tight, Water Resistant	Batch, Preset, Tachometer, Timer, Totalizer	9 mm, 13 mm	0.354 in, 0.512 in	100 VAC	240 VAC	68 mm	68 mm	External, Front Panel	Multiple	Multiple	Relay (2), Solid State (2)
AUTONICS CT6M-2P4	Down, Up	Screw Terminal	No Voltage, Voltage		6	6	LED - Green, Red Characters	IP65 - Dust Tight, Water Resistant	Batch, Preset, Tachometer, Timer, Totalizer	9 mm, 13 mm	0.354 in, 0.512 in	100 VAC	240 VAC	68 mm	68 mm	External, Front Panel	Multiple	Multiple	Relay (2), Solid State (2)
AUTONICS CT6M-2P2	Down, Up	Screw Terminal	No Voltage, Voltage		6	6	LED - Green, Red Characters	IP65 - Dust Tight, Water Resistant	Batch, Preset, Tachometer, Timer, Totalizer	9 mm, 13 mm	0.354 in, 0.512 in	24 V	48 V	68 mm	68 mm	External, Front Panel	Multiple	Multiple	Relay (2), Solid State (2)	24 VAC
AUTONICS CT6M-1P4	Down, Up	Screw Terminal	No Voltage, Voltage	Relay, Solid State	6	6	LED - Green, Red Characters	IP65 - Dust Tight, Water Resistant	Batch, Preset, Tachometer, Timer, Totalizer	9 mm, 13 mm	0.354 in, 0.512 in	100 VAC	240 VAC	68 mm	68 mm	External, Front Panel	Multiple	Multiple
AUTONICS CT6M-I4	Down, Up	Screw Terminal	No Voltage, Voltage		6	6	LED - Green, Red Characters	IP65 - Dust Tight, Water Resistant	Batch, Preset, Tachometer, Timer, Totalizer	9 mm, 13 mm	0.354 in, 0.512 in	100 VAC	240 VAC	68 mm	68 mm	External, Front Panel	Multiple	Multiple
