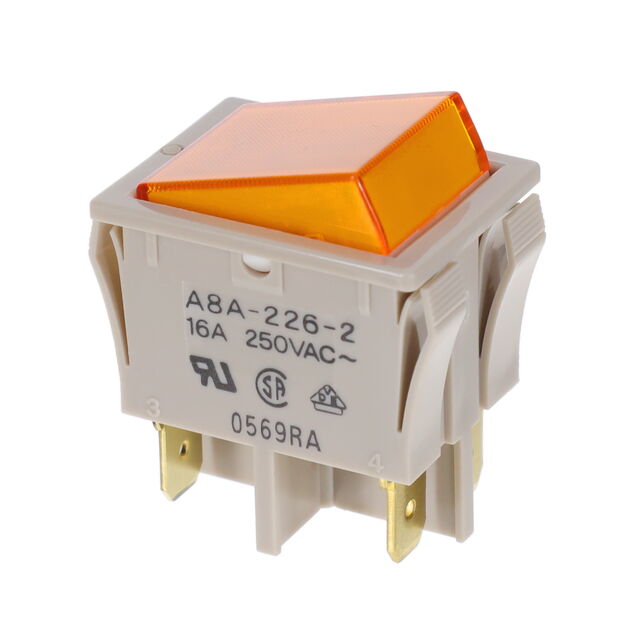

A8A-226-2

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	A8A-226-2

Actuator Marking	No Marking
Actuator Type	Flat - Illuminated
Approval Agency	CSA, EN, UL
Circuit	DPST
Color - Actuator/Cap	Orange
Current Rating (Amps)	16 A
Electrical Life	20000 Steps
Illumination Type, Color	Orange, Neon
Illumination Voltage (Nominal)	220 VAC/DC
Ingress Protection	IP00
Mechanical Life	40000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Mounting Type	Voltage Rating - AC	Illumination Voltage (Nominal)	Electrical Life	Approval Agency	Illumination Type, Color	Current Rating (Amps)	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Type	Actuator Marking	Termination Style	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Switch Function
Omron Electronics Inc-EMC Div A8A-226-2	Panel Mount Snap-In	125 V	220 VAC/DC	20000 Steps	CSA EN UL	Neon Orange	16 A	IP00	50 °C	-25 °C	40000 Cycles	Flat - Illuminated	No Marking	Quick Connect - 0.250" (6.3mm)	DPST	30 mm	22 mm	Orange	On-Off
Omron Electronics Inc-EMC Div A8A-226-1	Panel Mount Snap-In	125 V	220 VAC/DC	20000 Steps	CSA EN UL	Neon Orange	16 A	IP00	50 °C	-25 °C	40000 Cycles	Flat - Illuminated	No Marking	Quick Connect - 0.250" (6.3mm)	DPST	30 mm	22 mm	Orange	On-Off
