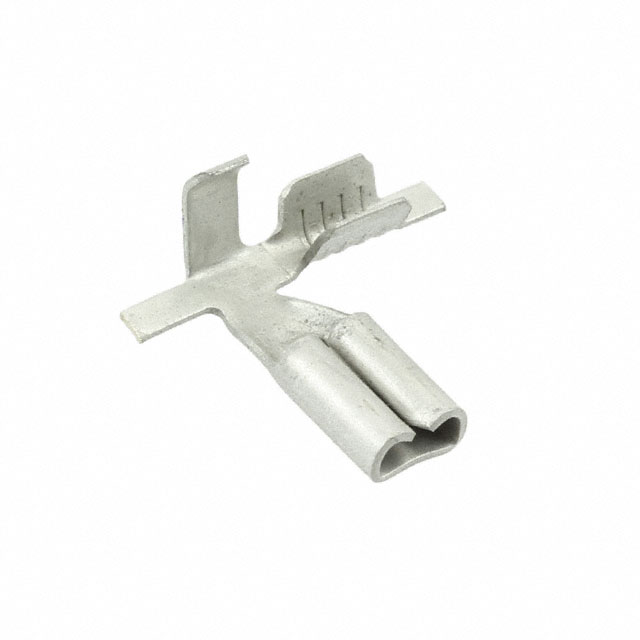

1217878-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.110
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217878-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.110
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217878-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 2.54 mm |
| Insulation Diameter [Max] [diameter] | 0.1 " |
| Insulation Diameter [Min] [diameter] | 0.065 " |
| Insulation Diameter [Min] [diameter] | 1.65 mm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Length [x] | 0.2 in |
| Tab Length [x] | 5.08 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.14 | |||
| Tape & Reel (TR) | 96000 | $ 0.09 | ||
1217878 Series
CONN QC RCPT 18-22AWG 0.110
| Part | Tab Thickness | Tab Thickness | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Tab Width | Tab Width | Contact Finish | Tab Length [x] | Tab Length [x] | Terminal Type | Termination | Insulation | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217878-1 | 0.032 in | 0.81 mm | 2.54 mm | 0.065 " | 0.1 " | 1.65 mm | Brass | 22 AWG | 17.5 AWG | Free Hanging (In-Line), Right Angle | 2.79 mm | 0.11 " | Tin | 0.2 in | 5.08 mm | Angled - 90°, Flag | Crimp | Non-Insulated | Female |
Description
General part information
1217878 Series
0.110" (2.79mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
