Q-0I01Z0001001M

Active

Amphenol Custom Cable

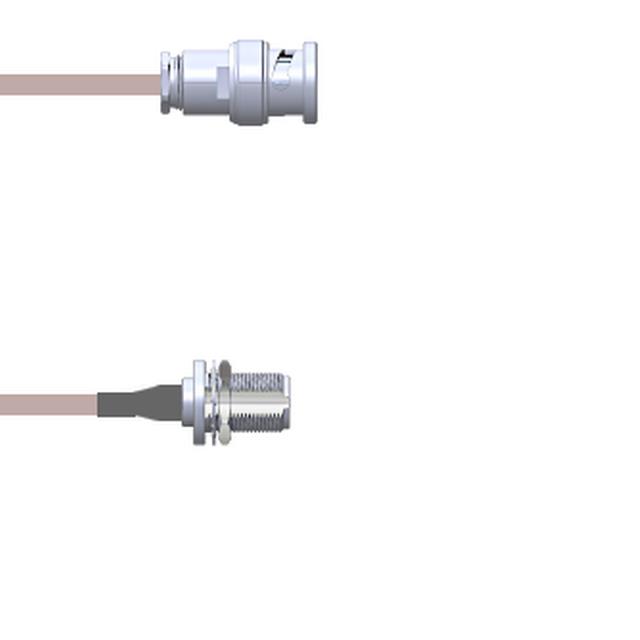

CBL ASSY BNC-NTYPE PLG-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I01Z0001001M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLG-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I01Z0001001M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0I01Z0 Series

Part	1st Connector	Style	2nd Contact Gender	2nd Connector Mounting Feature	1st Contact Gender	Length	Length	Length	2nd Connector	Color	2nd Connector Mounting Type	Features	1st Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Cable Type
Amphenol Custom Cable Q-0I01Z0001084i	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	84 in	2.1 m	7 ft	N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001003i	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	3 in	76.2 mm		N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001048i	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	48 in	1200 mm	4 ft	N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z00012.5M	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	98.4 in	2.5 m	8.2 '	N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001001M	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	39.4 in	1 m	3.3 ft	N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001012i	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	12 "	304.8 mm		N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001024i	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	24 "	609.6 mm		N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001072i	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	72 in	1.8 m	6 ft	N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001036i	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	36 in	91.44 cm		N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178
Amphenol Custom Cable Q-0I01Z0001002M	BNC Plug	BNC to N-Type	Female	Bulkhead - Front Side Nut	Male	78.7 in	2 m	6.6 ft	N-Type Jack	Copper	Panel Mount	Shielded	Free Hanging (In-Line)	50 Ohms	4 GHz	RG-178

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 91.37
		25	$ 89.61
		50	$ 87.84
		100	$ 86.08
		250	$ 84.32

Description

General part information

Q-0I01Z0 Series

Cable Assembly Coaxial BNC to N-Type RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
