BTA25-400B
ActiveSTMicroelectronics

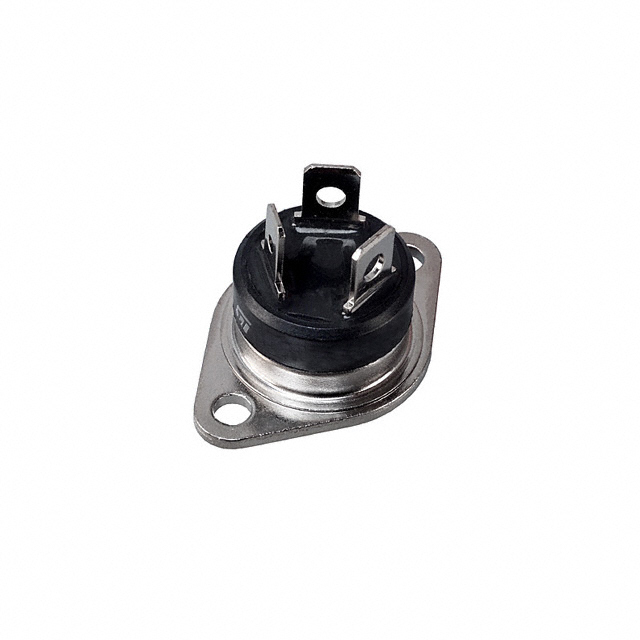

TRIAC 400V 25A RD91
Deep-Dive with AI
Search across all available documentation for this part.
BTA25-400B
ActiveSTMicroelectronics
TRIAC 400V 25A RD91
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BTA25-400B | BTA25 Series |
|---|---|---|
| - | - | |
| Configuration | Single | Single |
| Current - Gate Trigger (Igt) (Max) [Max] | 50 mA | 50 mA |
| Current - Hold (Ih) (Max) [Max] | 80 mA | 75 - 80 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 260 A, 250 A | 250 - 260 A |
| Current - On State (It (RMS)) (Max) [Max] | 25 A | 25 A |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | RD91-3 | RD91-3 |
| Supplier Device Package | RD91 | RD91 |
| Triac Type | Standard | Standard, Alternistor - Snubberless |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.3 V | 1.3 V |
| Voltage - Off State | 400 V | 400 - 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BTA25 Series
25A standard and Snubberless™ Triacs
| Part | Configuration | Mounting Type | Triac Type | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - On State (It (RMS)) (Max) [Max] | Supplier Device Package | Current - Hold (Ih) (Max) [Max] | Package / Case | Current - Gate Trigger (Igt) (Max) [Max] | Voltage - Off State | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BTA25-800B | Single | Chassis Mount | Standard | 1.3 V | 250 A, 260 A | 25 A | RD91 | 80 mA | RD91-3 | 50 mA | 800 V | ||
STMicroelectronics BTA25-800BW | |||||||||||||
STMicroelectronics BTA25-600BW | Single | Chassis Mount | Alternistor - Snubberless | 1.3 V | 250 A, 260 A | 25 A | RD91 | 75 mA | RD91-3 | 50 mA | 600 V | -40 °C | 125 ¯C |
STMicroelectronics BTA25-700B | Single | Chassis Mount | Standard | 1.3 V | 250 A, 260 A | 25 A | RD91 | 80 mA | RD91-3 | 50 mA | 700 V | -40 °C | 125 ¯C |
STMicroelectronics BTA25-600BW | |||||||||||||
STMicroelectronics BTA25-700B | |||||||||||||
STMicroelectronics BTA25-600BW | |||||||||||||
STMicroelectronics BTA25-800BW | |||||||||||||
STMicroelectronics BTA25-600BW | |||||||||||||
STMicroelectronics BTA25-600B | Single | Chassis Mount | Standard | 1.3 V | 250 A, 260 A | 25 A | RD91 | 80 mA | RD91-3 | 50 mA | 600 V | -40 °C | 125 ¯C |
STMicroelectronics BTA25-400B | Single | Chassis Mount | Standard | 1.3 V | 250 A, 260 A | 25 A | RD91 | 80 mA | RD91-3 | 50 mA | 400 V | -40 °C | 125 ¯C |
STMicroelectronics BTA25-600B | |||||||||||||
STMicroelectronics BTA25-800B | |||||||||||||
STMicroelectronics BTA25-800B | |||||||||||||
STMicroelectronics BTA25-800BW |
Description
General part information
BTA25 Series
Available either in through-hole or surface-mount packages, the BTA24, BTB24, BTA25, BTA26, BTB26 and T25 triac series is suitable for general purpose mains power AC switching.
