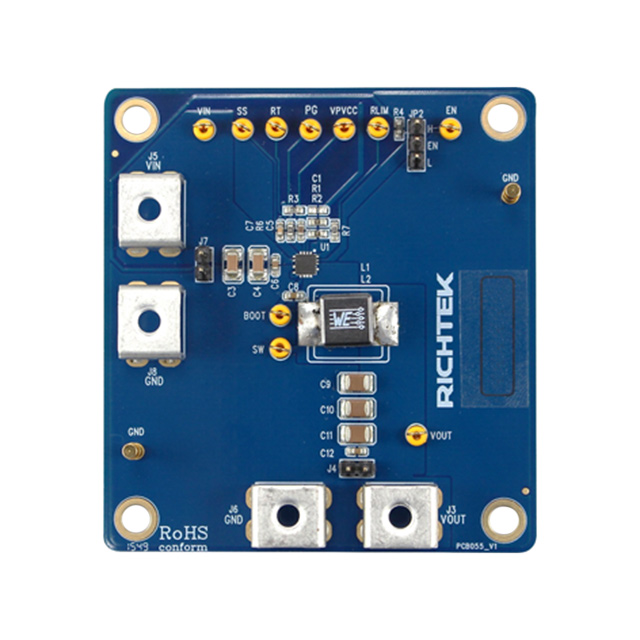

EVB_RT6242AHGQUF
ActiveRichtek USA Inc.
EVAL MODULE FOR RT6242AHGQUF
Deep-Dive with AI
Search across all available documentation for this part.
EVB_RT6242AHGQUF
ActiveRichtek USA Inc.
EVAL MODULE FOR RT6242AHGQUF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB_RT6242AHGQUF |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 12 A |
| Frequency - Switching | 500 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | RT6242A |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 4.5 V |
| Voltage - Output | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RT6242 Series
RT6242A ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
