YB15SKG01-5F-JF
ActivePUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-(ON), SQUARE, TRANSPARENT

YB15SKG01-5F-JF
ActivePUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-(ON), SQUARE, TRANSPARENT
Description
General part information
YB15SK Series

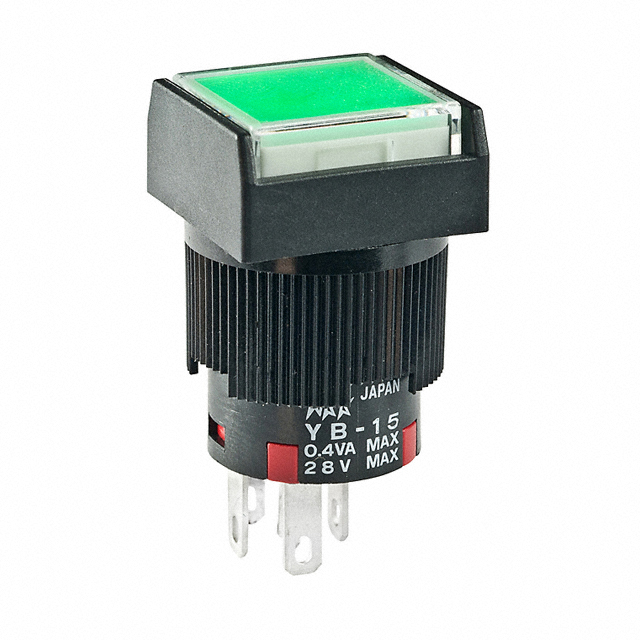

The YB15SKG01-5F-JF is a short body green-illuminated SPDT rectangular Pushbutton Switch with cap having clear lens and green diffuser. The terminals are made of phosphor bronze with tin-plating and gold-contacts. The Unique thermoplastic elastomer seal inside caps plus rolled sleeve of nitrile butadiene rubber at joining of housing and inner case, all for added protection to interior mechanism. Distinctive design of snap-action contacts for shock resistance, long life and sensitive actuation. The latch down for indication of circuit status, plus audible, tactile feedback with smooth, responsive operation.
Technical Specifications
Parameters and characteristics for this part
| Specification | YB15SKG01-5F-JF |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Square, Button |
| Circuit | SPDT |
| Color | Green |
| Color - Actuator/Cap | Clear (Green Filter/Diffuser) |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 100000 Cycles |
| Features | Tactile Feedback |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 2.2 VDC |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect, Solder |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
