1375737-1

Active

TE Connectivity AMP Connectors

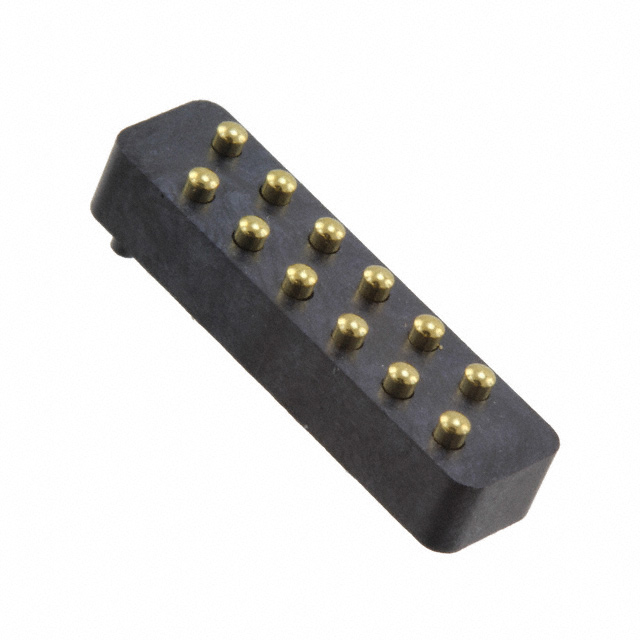

CONN SPRING MOD 12POS SMD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SPRING MOD 12POS SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Position Spring Compression Contact, Non-Gendered Connector Surface Mount

Technical documentation and resources

Specification	1375737-1	1375737 Series

Connector Type	Compression Contact, Non-Gendered	Compression Contact, Non-Gendered
Contact Finish	Gold	Gold
Contact Finish Thickness	0.51 µm	0.51 µm
Contact Finish Thickness	20 µin	20 µin
Material	Brass	Brass
Mounting Type	Surface Mount	Surface Mount
Number of Contacts	12	12
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Part	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Connector Type	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Material	Row Spacing [x]	Row Spacing	Number of Rows
TE Connectivity AMP Connectors 1375737-1	2.54 mm	0.1 in	Gold	Surface Mount	Compression Contact, Non-Gendered	12	0.51 µm	20 µin	Brass	0.1 in	2.54 mm	2
TE Connectivity AMP Connectors 3-1375737-1	2.54 mm	0.1 in	Gold	Surface Mount	Compression Contact, Non-Gendered	12	0.51 µm	20 µin	Brass	0.1 in	2.54 mm	2
