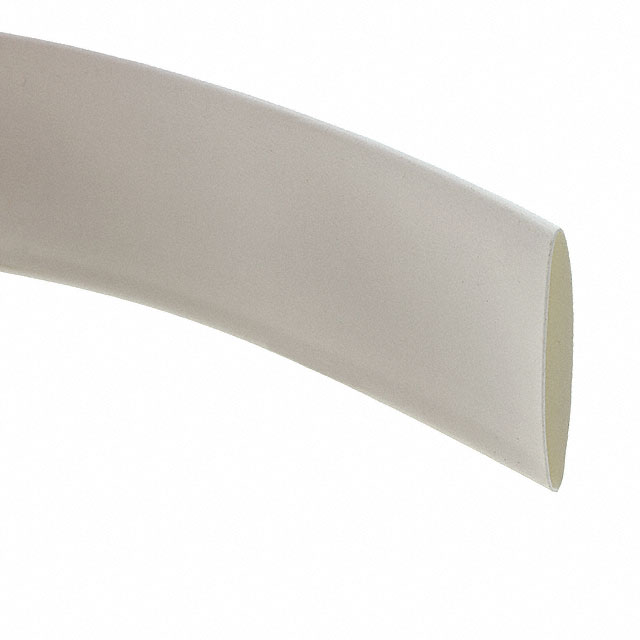

LSTT-19-9-SP

Unknown

TE Connectivity Raychem Cable Protection

HEAT SHRINK 1=1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSTT-19-9-SP

Unknown

TE Connectivity Raychem Cable Protection

HEAT SHRINK 1=1M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSTT-19-9-SP

Color	White
Inner Diameter - Recovered [diameter]	0.375 in
Inner Diameter - Recovered [diameter]	9.53 mm
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.81 mm
Recovered Wall Thickness	0.032 "
Shelf Life	144 Months
Shrink Temperature	65 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Flexible

LSTT Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life	Material	Shrinkage Ratio	Shrink Temperature	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]
TE Connectivity Raychem Cable Protection LSTT-4.8-0-SP
TE Connectivity Raychem Cable Protection LSTT-19-0-SP	125 °C	-40 °C	1 m	3.28 ft	0.81 mm	0.032 "	Tubing Flexible	35 °C	0 °C	144 Months	Polyolefin (PO)	2 to 1	65 °C	Black	0.375 in	9.53 mm
TE Connectivity Raychem Cable Protection LSTT-19-9-SP	125 °C	-40 °C	1 m	3.28 ft	0.81 mm	0.032 "	Tubing Flexible	35 °C	0 °C	144 Months	Polyolefin (PO)	2 to 1	65 °C	White	0.375 in	9.53 mm
TE Connectivity Raychem Cable Protection LSTT-9.5-0-SP
TE Connectivity Raychem Cable Protection LSTT-32-0-SP	125 °C	-40 °C	1 m	3.28 ft	1.05 mm	0.041 in	Tubing Flexible	35 °C	0 °C	144 Months	Polyolefin (PO)	2 to 1	65 °C	Black	0.63 "	16 mm	196.8 ft	60 m	1.26 in	32 mm
TE Connectivity Raychem Cable Protection LSTT-12.7-2-SP	125 °C	-40 °C			0.66 mm	0.026 "	Tubing Flexible	35 °C	0 °C	144 Months	Polyolefin (PO)	2 to 1	65 °C	Red	0.25 in	6.35 mm			0.5 in	12.7 mm
TE Connectivity Raychem Cable Protection LSTT-52-0-SP
TE Connectivity Raychem Cable Protection LSTT-4.8-X-SP
TE Connectivity Raychem Cable Protection LSTT-12.7-0-SP	125 °C	-40 °C	1 m	3.28 ft	0.66 mm	0.026 "	Tubing Flexible	35 °C	0 °C	144 Months	Polyolefin (PO)	2 to 1	65 °C	Black	0.25 in	6.35 mm	492.1 ft	150 m	0.5 in	12.7 mm
TE Connectivity Raychem Cable Protection LSTT-1.6-0-SP	125 °C	-40 °C	1 m	3.28 ft	0.5 mm	0.019 "	Tubing Flexible	35 °C	0 °C	144 Months	Polyolefin (PO)	2 to 1	65 °C	Black	0.031 in	0.79 mm			0.063 in	1.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LSTT Series

Heat Shrink Tubing, Flexible 0.750" (19.05mm) 2 to 1 White 3.28' (1.00m)
