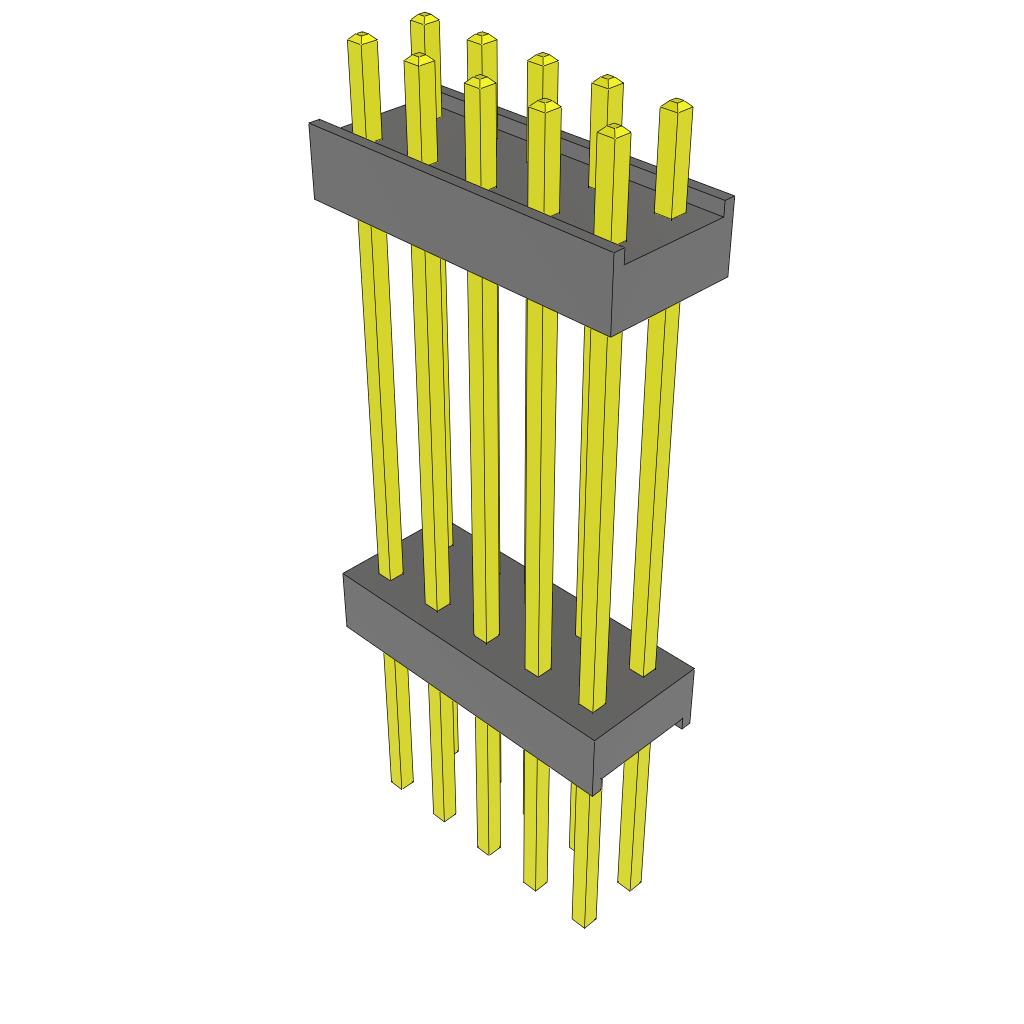

EW-05-13-F-D-790 - EW-05-13-F-D-790

EW-05-13-F-D-790

Active
Samtec Inc.

CONN HDR 10POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEW DatasheetDatasheet+1
EW-05-13-F-D-790 - EW-05-13-F-D-790

EW-05-13-F-D-790

Active
Samtec Inc.

CONN HDR 10POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsEW DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationEW-05-13-F-D-790
ColorBlack
Contact Finish - Post (Mating)Gold
Contact Finish Thickness - Post (Mating)3 Áin
Contact Finish Thickness - Post (Mating)0.076 Ám
Length - Overall Pin [x]31.242 mm
Length - Overall Pin [x]1.23 in
Length - Post (Mating) [x]2.794 mm
Length - Post (Mating) [x]0.11 in
Length - Stack Height [x]20.066 mm
Length - Stack Height [x]0.79 in
Length - Tail0.33 in
Length - Tail8.382 mm
Mounting TypeThrough Hole
Number of Positions10
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
TerminationSolder

EW-05-13 Series

PartRow Spacing [x]Row SpacingNumber of RowsLength - Overall Pin [x]Length - Overall Pin [x]Length - Post (Mating) [x]Length - Post (Mating) [x]Length - Stack Height [x]Length - Stack Height [x]ColorMounting TypeLength - TailLength - TailTerminationContact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)Contact Finish - Post (Mating)Number of PositionsPitch [x]Pitch [x]
Samtec Inc.
EW-05-13-L-D-600
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.3 in
7.62 mm
0.6 in
15.24 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
0.25 Ám
10 Áin
Gold
10
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-G-D-330
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.33 in
8.382 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
0.25 Ám
10 Áin
Gold
10
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-S-D-655
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.245 in
6.223 mm
0.655 in
16.637 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
0.76 µm
30 µin
Gold
10
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-T-S-750
1
31.242 mm
1.23 in
0.15 in
3.81 mm
0.75 in
19.05 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
Tin
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-F-D-790
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.11 in
2.794 mm
0.79 in
20.066 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
0.076 Ám
3 Áin
Gold
10
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-T-S-590
1
31.242 mm
1.23 in
0.31 in
7.874 mm
0.59 in
14.986 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
Tin
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-L-D-580
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.32 in
8.128 mm
0.58 in
14.732 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
0.25 Ám
10 Áin
Gold
10
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-G-D-632
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.268 in
6.807 mm
0.632 in
16.053 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
0.25 Ám
10 Áin
Gold
10
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-L-D-630
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.27 in
6.858 mm
0.63 in
16.002 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
0.25 Ám
10 Áin
Gold
10
2.54 mm
0.1 in
Samtec Inc.
EW-05-13-T-D-750
0.1 in
2.54 mm
2
31.242 mm
1.23 in
0.15 in
3.81 mm
0.75 in
19.05 mm
Black
Through Hole
0.33 in
8.382 mm
Solder
Tin
10
2.54 mm
0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.02

Description

General part information

EW-05-13 Series

10 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
