M24308/4-1F

Active

ITT Cannon, LLC

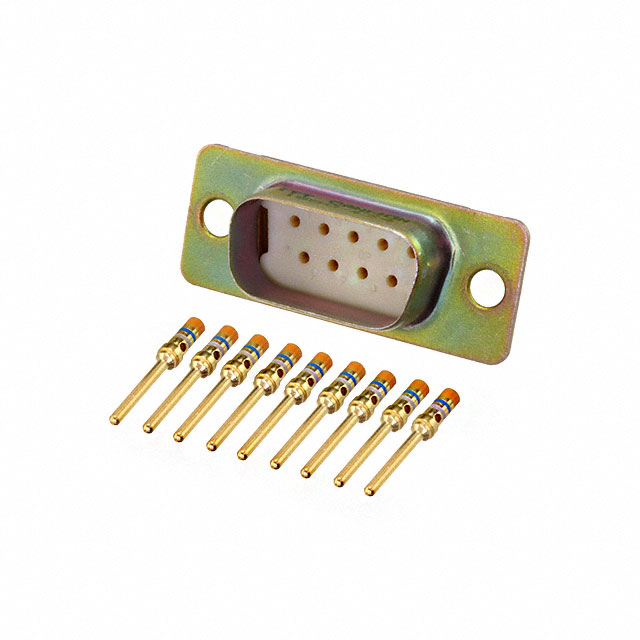

D SUB CONNECTOR, DB9, STANDARD, PLUG, MIL-C-24308 SERIES, 9 CONTACTS, DE, CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

M24308/4-1F

Active

ITT Cannon, LLC

D SUB CONNECTOR, DB9, STANDARD, PLUG, MIL-C-24308 SERIES, 9 CONTACTS, DE, CRIMP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/4-1F

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Crimp

M24308/4 Series

Part	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions	Connector Type	Mounting Type	Dielectric Material	Mating Cycles	Shell Material, Finish	Connector Style	Note	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Features	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC M24308/4-265Z	Housing/Shell (Unthreaded)	-55 °C	150 °C	Signal	3	2	(DA A) High Density	26	Plug for Male Contacts	Free Hanging (In-Line)	Thermoplastic	500	Steel Yellow Chromate Plated Zinc	D-Sub High Density	Contacts Not Included
ITT Cannon, LLC M24308/4-265F	Housing/Shell (Unthreaded)	-55 °C	150 °C	Signal	3	2	(DA A) High Density	26	Plug for Male Contacts	Free Hanging (In-Line)	Thermoplastic	500	Steel Yellow Chromate Plated Cadmium	D-Sub High Density	Contacts Not Included
ITT Cannon, LLC M24308/4-261F	Housing/Shell (Unthreaded)	-55 °C	150 °C	Signal	2				Plug for Male Contacts	Free Hanging (In-Line)	Thermoplastic	500	Steel Yellow Chromate Plated Cadmium	D-Sub	Contacts Not Included	B DB	3
ITT Cannon, LLC M24308/4-262F	Housing/Shell (Unthreaded)	-55 °C	125 °C	Signal	2		4 (DC C)	37	Plug for Male Contacts	Free Hanging (In-Line) Panel Mount	Thermoplastic	500	Steel Yellow Chromate Plated Cadmium	D-Sub	Contacts Not Included			Black
ITT Cannon, LLC M24308/4-455F
ITT Cannon, LLC M24308/4-464F	Housing/Shell (Unthreaded)	-55 °C	125 °C	Signal	3			44	Plug for Male Contacts	Free Hanging (In-Line) Panel Mount	Thermoplastic	500	Steel Yellow Chromate Plated Cadmium	D-Sub High Density	Contacts Not Included			Black	3	B DB
ITT Cannon, LLC M24308/4-7F	Cable Side (M3)	-55 °C	150 °C	Signal	2	2		15	Male Pins Plug		Thermoplastic		Steel Yellow Chromate Plated Cadmium	D-Sub							50 µin	1.27 µm	Gold	Crimp	Shielded	7.5 A
ITT Cannon, LLC M24308/4-264F	Housing/Shell (Unthreaded)	-55 °C	150 °C	Signal	3			15	Plug for Male Contacts	Free Hanging (In-Line)	Thermoplastic	500	Brass Yellow Chromate Plated Cadmium	D-Sub High Density	Contacts Not Included					DE E							1	High Density
ITT Cannon, LLC M24308/4-1F	Housing/Shell (Unthreaded)	-55 °C	150 °C	Signal	2			9	Male Pins Plug		Thermoplastic		Steel Yellow Chromate Plated Cadmium	D-Sub		DE E	1				50 µin	1.27 µm	Gold	Crimp	Shielded	7.5 A
ITT Cannon, LLC M24308/4-440F	Housing/Shell (Unthreaded)	-55 °C	150 °C	Signal	3			15	Male Pins Plug		Thermoplastic		Steel Yellow Chromate Plated Cadmium	D-Sub High Density						DE E	50 µin	1.27 µm	Gold	Crimp	Shielded	7.5 A	1	High Density

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.53
		1	$ 19.03
		10	$ 23.52
		10	$ 16.49
		25	$ 23.07
		25	$ 15.63
		50	$ 15.40
		50	$ 20.64
		100	$ 18.68
		100	$ 13.59
		250	$ 12.68
		500	$ 12.41
	Tray	1	$ 20.91
		10	$ 16.10
		25	$ 14.57
		40	$ 13.86
		80	$ 12.89
		230	$ 11.59
		440	$ 10.89
		945	$ 10.19
Newark	Each	1	$ 18.80
		1	$ 25.77
		5	$ 17.39
		10	$ 15.98
		10	$ 22.94
		25	$ 22.20
		25	$ 14.99
		50	$ 14.27
		50	$ 20.84
		100	$ 13.58
		100	$ 19.61
		250	$ 12.74

Description

General part information

M24308/4 Series

The M24308/4-1F is a 9-way Crimp D-sub Plug, made of steel with cadmium finish. The M24308 series connector is deliver optimum performance and reliability. The wire separator increases reliability and allows for use in high vibration environment.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
