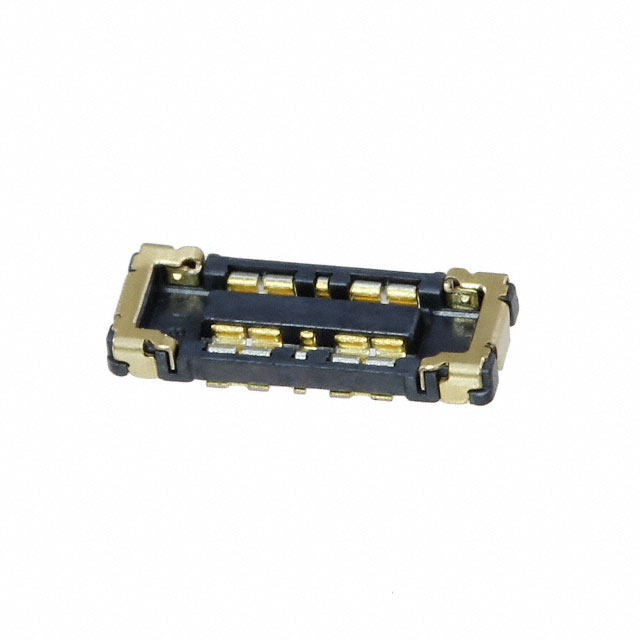

Specification	WP10-S004VA10-R15000

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.028 in
Mated Stacking Height	0.7 mm
Mounting Type	Surface Mount
Number of Positions (Normal)	4
Number of Positions (Power)	4
Number of Positions (Total)	8
Number of Rows	2
Pitch	0.016 in

WP10-S00 Series

Part	Number of Rows	Height Above Board	Pitch	Connector Type	Contact Finish	Mounting Type	Features	Mated Stacking Height	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)
JAE Electronics WP10-S004VA10-R15000	2	0.028 in	0.016 in	Center Strip Contacts Receptacle	Gold	Surface Mount	Solder Retention	0.7 mm	4	4	8
JAE Electronics WP10-S002VA10-R15000	2	0.028 in	0.016 in	Center Strip Contacts Receptacle	Gold	Surface Mount	Solder Retention	0.7 mm	2	4	6
