T2400001250-000
ActiveTE Connectivity AMP Connectors
CSM-25
Deep-Dive with AI
Search across all available documentation for this part.
T2400001250-000
ActiveTE Connectivity AMP Connectors
CSM-25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2400001250-000 | T240 Series |
|---|---|---|
| Contact Finish | Silver | Silver |
| Contact Finish Thickness | 2 µm | 2 µm |
| Contact Finish Thickness | 78.7 µin | 78.7 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Socket, Pin |
| Wire Gauge | 25 mm² | 25 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.78 | |
| 20 | $ 7.03 | |||
| 40 | $ 6.85 | |||
| 60 | $ 6.59 | |||
| 100 | $ 6.55 | |||
T240 Series
CSF-25
| Part | Pin or Socket | Contact Termination | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2400002250-000 | Socket | Crimp | 25 mm² | 2 µm | 78.7 µin | Silver |
TE Connectivity AMP Connectors T2400001250-000 | Pin | Crimp | 25 mm² | 2 µm | 78.7 µin | Silver |
Description
General part information
T240 Series

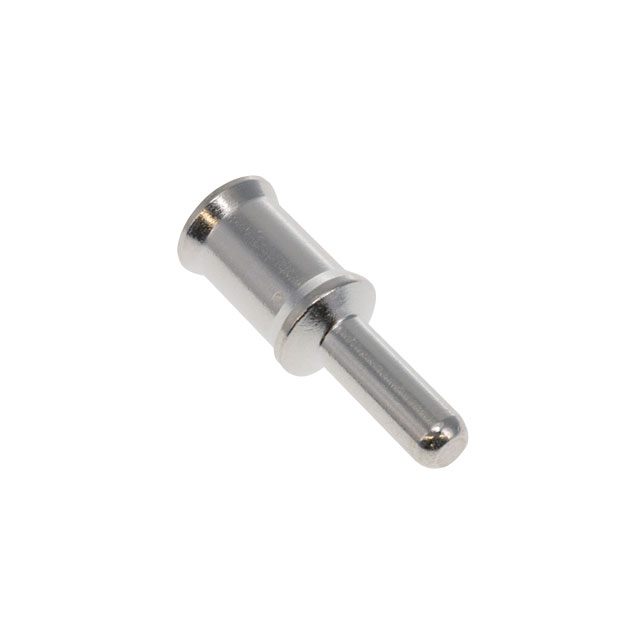

Contact Crimp Pin 25mm² Silver
Documents
Technical documentation and resources
