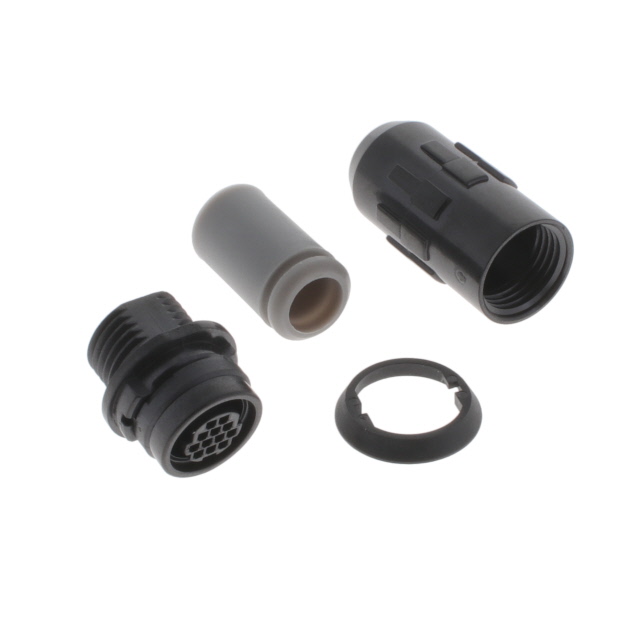

MCPK-8-S

Active

Samtec Inc.

CONN PLUG HSG FMALE 12POS INLINE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN PLUG HSG FMALE 12POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MCPK-8-S

Connector Type	Plug Housing
Contact Shape	Rectangular
Contact Type	Crimp
Fastening Type	Push-Pull
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	8
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Type	Insert Material	Shell Size - Insert	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Connector Type	Fastening Type	Note	Features	Ingress Protection	Housing Color	Mounting Type	Orientation	Contact Shape	Shell Material	Type
Samtec Inc. MCPK-8-S	Crimp	Polyphenylene Sulfide (PPS)	8	12	-20 C	80 C	Unshielded	Plug Housing	Push-Pull	Contacts Not Included	Backshell	IP67 - Dust Tight Waterproof	Black	Free Hanging (In-Line)	Keyed	Rectangular	Polybutylene Terephthalate (PBT)	For Female Sockets
Samtec Inc. MCPK-8-T	Crimp	Polyphenylene Sulfide (PPS)	8	12	-20 C	80 C	Unshielded	Plug Housing	Push-Pull	Contacts Not Included	Backshell	IP67 - Dust Tight Waterproof	Black	Free Hanging (In-Line)	Keyed	Rectangular	Polybutylene Terephthalate (PBT)	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
