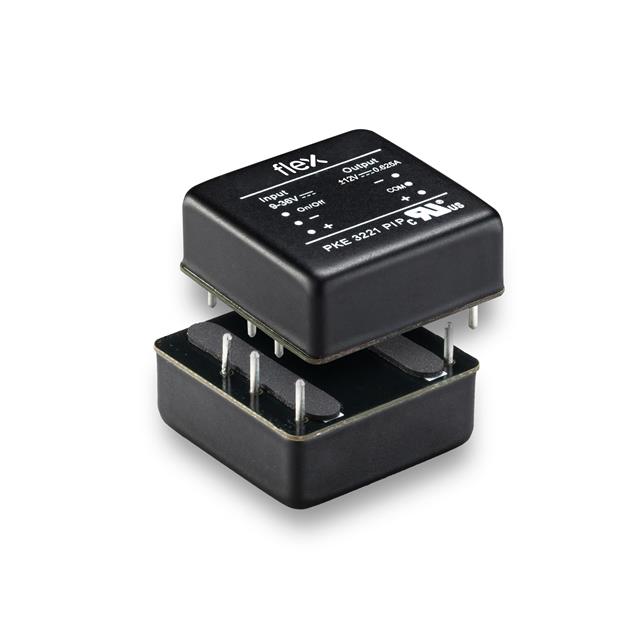

PKE3221PI

Active

Flex Power Modules

DC DC CONVERTER +/-12V 15W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER +/-12V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	PKE3221PI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max)	625 mA
Current - Output (Max)	625 mA
Efficiency	90 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	1 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.43 "
Size / Dimension [z]	10.8 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

Part	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1	Voltage - Input (Min) [Min]	Type	Applications	Efficiency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Standard Number	Approval Agency	Control Features	Features	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Mounting Type	Current - Output (Max)
Flex Power Modules PKE3221PI	36 V	6-DIP Module	12 V	9 V	Isolated Module	ITE (Commercial)	90 %	2	-40 °C	115 °C	1.5 kV	62368-1	CB CSA IEC TUV UL	Active Low Enable	Adjustable Output Remote On/Off	-12 V	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm	625 mA	625 mA	15 W	Through Hole
Flex Power Modules PKE3225PI	36 V	6-DIP Module	15 V	9 V	Isolated Module	ITE (Commercial)	89 %	2	-40 °C	115 °C	1.5 kV	62368-1	CB CSA IEC TUV UL	Active Low Enable	Adjustable Output Remote On/Off	-15 V	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm		500 mA	15 W	Through Hole	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 22.61

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 9V - 36V Input
