179-015-413R491
ActiveMH Connectors

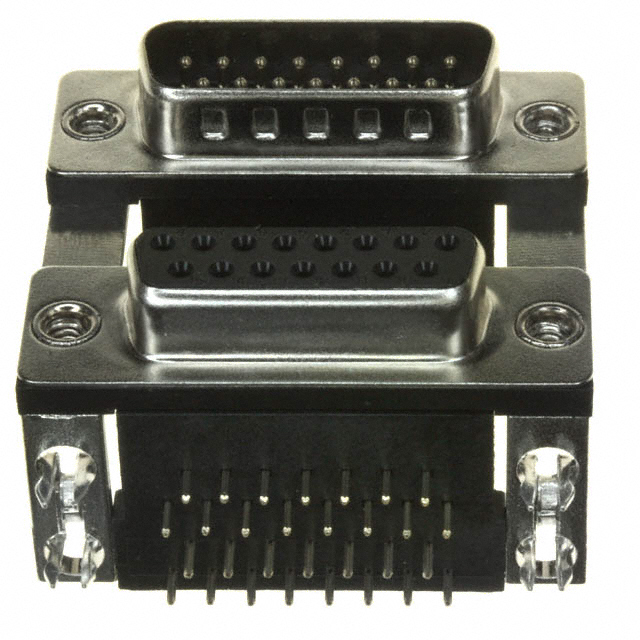

STACKED D SUB CONNECTOR, 179 SERIES, DA, PLUG, 15 CONTACTS, DA, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
179-015-413R491
ActiveMH Connectors
STACKED D SUB CONNECTOR, 179 SERIES, DA, PLUG, 15 CONTACTS, DA, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 179-015-413R491 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets, Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | 2 |
| Shell Size, Connector Layout [custom] | 2 |
| Termination | Solder |
179-015 Series
| Part | Dielectric Material | Features | Connector Style | Flange Feature | Material Flammability Rating | Termination | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Contact Form | Backset Spacing | Backset Spacing | Current Rating (Amps) | Number of Positions | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Mounting Type | Contact Material | Color | Contact Finish | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Polyester Glass Filled | Board Lock Grounding Indents | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | UL94 V-0 | Solder | Flash | 2 | 2 | Plug Male Pins Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | |
MH Connectors | Polyamide (PA9T) Nylon 9T | Board Lock Grounding Indents Shielded | D-Sub - Stacked | Housing/Shell (4-40) | UL94 V-0 | Solder | Flash | 2 | 2 | Plug Male Pins Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
MH Connectors | Polyamide (PA9T) Nylon 9T | Board Lock Grounding Indents Shielded | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | UL94 V-0 | Solder | Flash | 2 | 2 | Plug Male Pins Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
MH Connectors | Polyamide (PA9T) Nylon 9T | Grounding Indents Shielded | D-Sub - Stacked | Housing/Shell (4-40) | UL94 V-0 | Solder | Flash | 2 | 2 | Plug Male Pins Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
MH Connectors | Polyamide (PA9T) Nylon 9T | Board Lock Grounding Indents Shielded | D-Sub - Stacked | Housing/Shell (4-40) | UL94 V-0 | Solder | Flash | 2 | 2 | Male Pins Plug | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
MH Connectors | Polyamide (PA9T) Nylon 9T | Shielded | D-Sub - Stacked | Housing/Shell (4-40) | UL94 V-0 | Solder | Flash | 2 | 2 | Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
MH Connectors | Polyamide (PA9T) Nylon 9T | Board Lock Shielded | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | UL94 V-0 | Solder | Flash | 2 | 2 | Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
MH Connectors | Polyester Glass Filled | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | UL94 V-0 | Solder | Flash | 2 | 2 | Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | ||
MH Connectors | Polyamide (PA9T) Nylon 9T | Grounding Indents Shielded | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | UL94 V-0 | Solder | Flash | 2 | 2 | Plug Male Pins Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
MH Connectors | Polyamide (PA9T) Nylon 9T | Board Lock Grounding Indents Shielded | D-Sub - Stacked | Housing/Shell (4-40) | UL94 V-0 | Solder | Flash | 2 | 2 | Plug Male Pins Receptacle Female Sockets | Stamped | 8.08 mm | 0.318 " | 5 A | 15 | 2 | 105 ░C | -55 °C | Signal | Board Edge Right Angle Through Hole | Brass | Black | Gold | Nickel Plated Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
179-015 Series
15, 15 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
