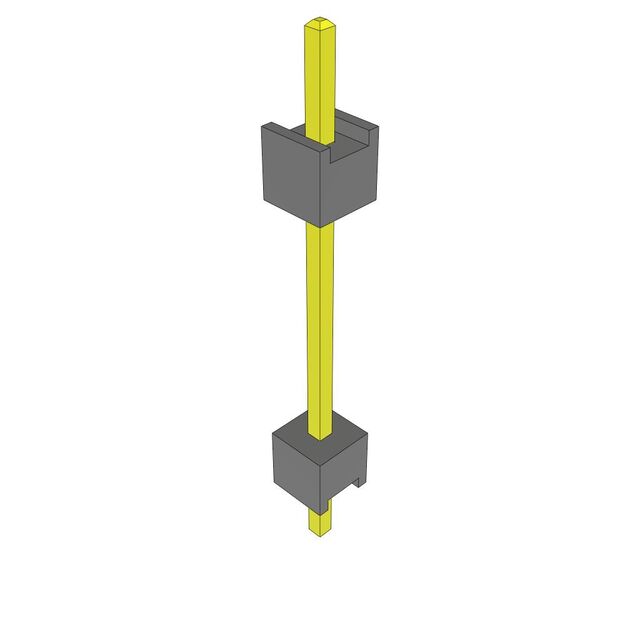

DW-01-10-T-S-590

Active

Samtec Inc.

CONN HDR 1POS STACK T/H TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DW-01-10-T-S-590

Active

Samtec Inc.

CONN HDR 1POS STACK T/H TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-01-10-T-S-590

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	21.082 mm
Length - Overall Pin [x]	0.83 in
Length - Post (Mating) [x]	3.302 mm
Length - Post (Mating) [x]	0.13 in
Length - Stack Height [x]	0.59 in
Length - Stack Height [x]	14.986 mm
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	1
Number of Rows	1
Termination	Solder

DW-01-10 Series

Part	Row Spacing [x]	Row Spacing	Number of Positions	Color	Contact Finish - Post (Mating)	Length - Tail [x]	Length - Tail [x]	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Length - Overall Pin [x]	Length - Overall Pin	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. DW-01-10-T-Q-500	0.1 in	2.54 mm	2	Black	Tin	0.11 in	2.794 mm	3	0.22 in	5.588 mm	Solder	0.83 in	21.082 mm	0.5 in	12.7 mm	Through Hole
Samtec Inc. DW-01-10-G-S-600			1	Black	Gold	0.11 in	2.794 mm	1	0.12 in	3.048 mm	Solder	0.83 in	21.082 mm	0.6 in	15.24 mm	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-01-10-T-S-400			1	Black	Tin	0.11 in	2.794 mm	1	0.32 in	8.128 mm	Solder	0.83 in	21.082 mm	0.4 in	10.16 mm	Through Hole
Samtec Inc. DW-01-10-G-S-575			1	Black	Gold	0.11 in	2.794 mm	1	0.145 in	3.683 mm	Solder	0.83 in	21.082 mm	0.575 in	14.605 mm	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-01-10-G-S-585			1	Black	Gold	0.11 in	2.794 mm	1	0.135 in	3.429 mm	Solder	0.83 in	21.082 mm	0.585 in	14.859 mm	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-01-10-T-S-590			1	Black	Tin	0.11 in	2.794 mm	1	0.13 in	3.302 mm	Solder	0.83 in	21.082 mm	0.59 in	14.986 mm	Through Hole
Samtec Inc. DW-01-10-G-S-255			1	Black	Gold	0.11 in	2.794 mm	1	0.465 in	11.811 mm	Solder	0.83 in	21.082 mm	0.255 in	6.477 mm	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-01-10-T-S-531			1	Black	Tin	0.11 in	2.794 mm	1	0.189 in	4.8 mm	Solder	0.83 in	21.082 mm	0.531 in	13.487 mm	Through Hole
Samtec Inc. DW-01-10-L-S-585			1	Black	Gold	0.11 in	2.794 mm	1	0.135 in	3.429 mm	Solder	0.83 in	21.082 mm	0.585 in	14.859 mm	Through Hole	0.25 Ám	10 Áin
Samtec Inc. DW-01-10-T-S-500			1	Black	Tin	0.11 in	2.794 mm	1	0.22 in	5.588 mm	Solder	0.83 in	21.082 mm	0.5 in	12.7 mm	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.13

Description

General part information

DW-01-10 Series

1 Position Header Spacer Connector Tin Through Hole
