M7OXK-1506R

Active

D-SUB CABLE - MFL15K/MC16M/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MFL15K/MC16M/X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

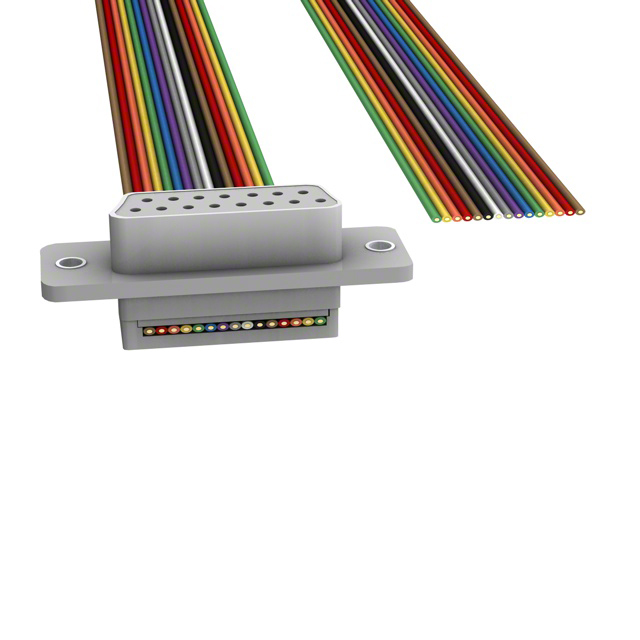

D-Sub Cable Assembly DB15 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Technical documentation and resources

Part	1st Connector	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Type	Length	Length	Shielding	2nd Connector	Color	Contact Finish
3M M7OXK-5010R	Female Sockets, Receptacle	0.76 Ám	30 Áin	50	DB50	10 ft	3.05 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-2510J	Female Sockets, Receptacle	0.76 Ám	30 Áin		DB25	10 ft	3.05 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-3706R	Female Sockets, Receptacle	0.76 Ám	30 Áin	37	DB37	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-0906R	Female Sockets, Receptacle	0.76 Ám	30 Áin	9	DB9	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-5006J	Female Sockets, Receptacle	0.76 Ám	30 Áin	50	DB50	6 ft	1.83 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-2506R	Female Sockets, Receptacle	0.76 Ám	30 Áin		DB25	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-2506J	Female Sockets, Receptacle	0.76 Ám	30 Áin		DB25	6 ft	1.83 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-0906J	Female Sockets, Receptacle	0.76 Ám	30 Áin	9	DB9	6 ft	1.83 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-3710J	Female Sockets, Receptacle	0.76 Ám	30 Áin	37	DB37	10 ft	3.05 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-5006R	Female Sockets, Receptacle	0.76 Ám	30 Áin	50	DB50	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
