M7OXK-0906R

Active

D-SUB CABLE - MFL09K/MC10M/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MFL09K/MC10M/X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

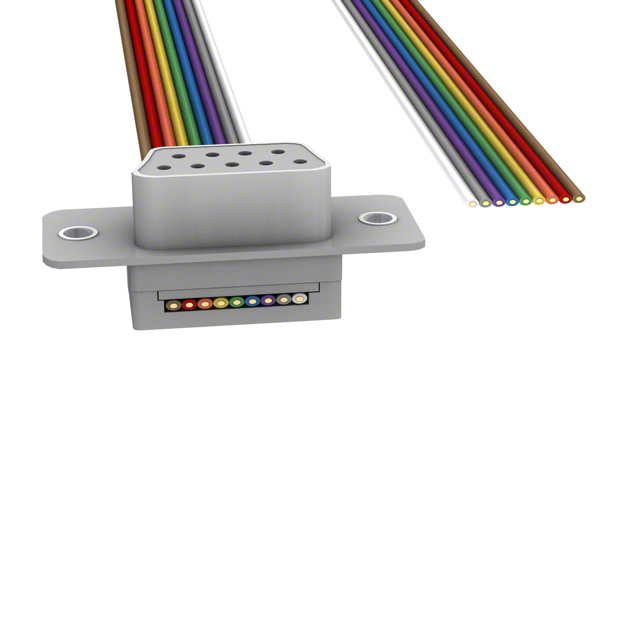

D-Sub Cable Assembly DB9 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

D-SUB CABLE - MFL50K/MC50M/X

Part	1st Connector	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Type	Length	Length	Shielding	2nd Connector	Color	Contact Finish
3M M7OXK-5010R	Female Sockets, Receptacle	0.76 Ám	30 Áin	50	DB50	10 ft	3.05 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-2510J	Female Sockets, Receptacle	0.76 Ám	30 Áin		DB25	10 ft	3.05 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-3706R	Female Sockets, Receptacle	0.76 Ám	30 Áin	37	DB37	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-0906R	Female Sockets, Receptacle	0.76 Ám	30 Áin	9	DB9	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-5006J	Female Sockets, Receptacle	0.76 Ám	30 Áin	50	DB50	6 ft	1.83 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-2506R	Female Sockets, Receptacle	0.76 Ám	30 Áin		DB25	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
3M M7OXK-2506J	Female Sockets, Receptacle	0.76 Ám	30 Áin		DB25	6 ft	1.83 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-0906J	Female Sockets, Receptacle	0.76 Ám	30 Áin	9	DB9	6 ft	1.83 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-3710J	Female Sockets, Receptacle	0.76 Ám	30 Áin	37	DB37	10 ft	3.05 m	Unshielded	Individual Wire Leads		Gold
3M M7OXK-5006R	Female Sockets, Receptacle	0.76 Ám	30 Áin	50	DB50	6 ft	1.83 m	Unshielded	Individual Wire Leads	Multiple, Ribbon	Gold
