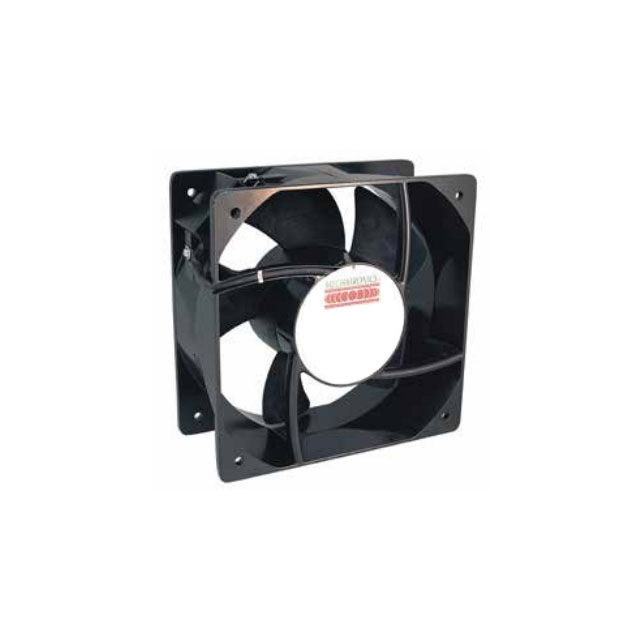

UF20TC23-BWHR

Active

Mechatronics Fan Group

AC FAN AXIAL 205X205X72MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Fan Group

AC FAN AXIAL 205X205X72MM 230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	UF20TC23-BWHR

Air Flow	710 CFM
Air Flow	19.88 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.52 A
Fan Type	Tubeaxial
Features	Permanent Split Capacitor Motor
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	73 dB(A)
Power (Watts)	126 W
RPM	3350 RPM
Size / Dimension [x]	205.5 mm
Size / Dimension [y]	205.5 mm
Static Pressure	1.45 in H2O
Static Pressure	361.2 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Width [y]	72 mm

AC FAN AXIAL 205X205X72MM 230VAC

Part	Bearing Type	Fan Type	Size / Dimension [x]	Size / Dimension [y]	Material - Blade	Width [y]	Termination	Current Rating (Amps)	Power (Watts)	RPM	Material - Frame	Air Flow	Air Flow	Noise	Features	Voltage - Rated	Static Pressure	Static Pressure
Mechatronics Fan Group UF20TC23-BWHR	Ball	Tubeaxial	205.5 mm	205.5 mm	Plastic	72 mm	2 Wire Leads	0.52 A	126 W	3350 RPM	Aluminum	710 CFM	19.88 m³/min	73 dB(A)	Permanent Split Capacitor Motor	230 VAC	1.45 in H2O	361.2 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 205.5mm L x 205.5mm H Ball 710.0 CFM (19.88mł/min) 2 Wire Leads
