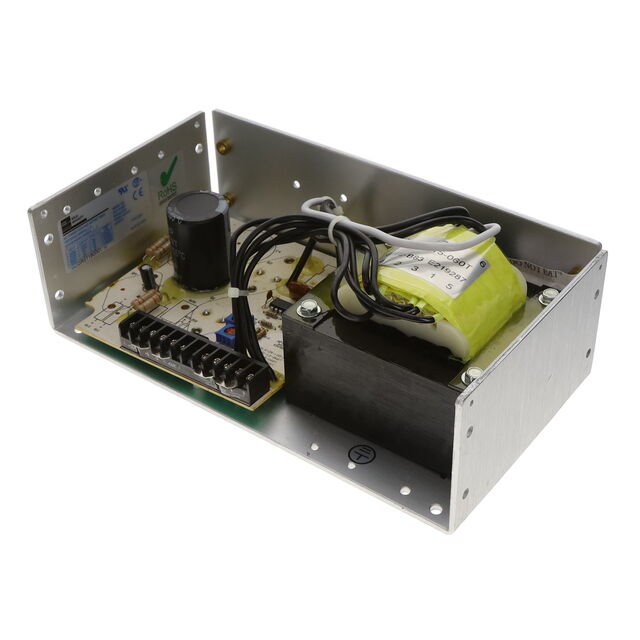

SLS-15-060T

SolaHD

AC/DC CONVERTER 15V 90W

Search across all available documentation for this part.

SolaHD

AC/DC CONVERTER 15V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	SLS-15-060T

Applications	ITE (Commercial)
Approval Agency	CSA, cURus
Current - Output 1	6 A
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	90 W
Size / Dimension [x]	9 in
Size / Dimension [x]	228.6 mm
Size / Dimension [y]	4.87 in
Size / Dimension [y]	123.7 mm
Size / Dimension [z]	2.75 in
Size / Dimension [z]	69.9 mm
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	15 V

Part	Type	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Applications	Power (Watts)	Mounting Type	Approval Agency	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1
SolaHD SLS-15-060T	Open Frame	1	240 VAC	100 VAC	6 A	ITE (Commercial)	90 W	Chassis Mount	CSA cURus	Adjustable Output Remote Sense	4.87 in	9 in	2.75 in	69.9 mm	228.6 mm	123.7 mm	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 15V 100 ~ 240 VAC Input
