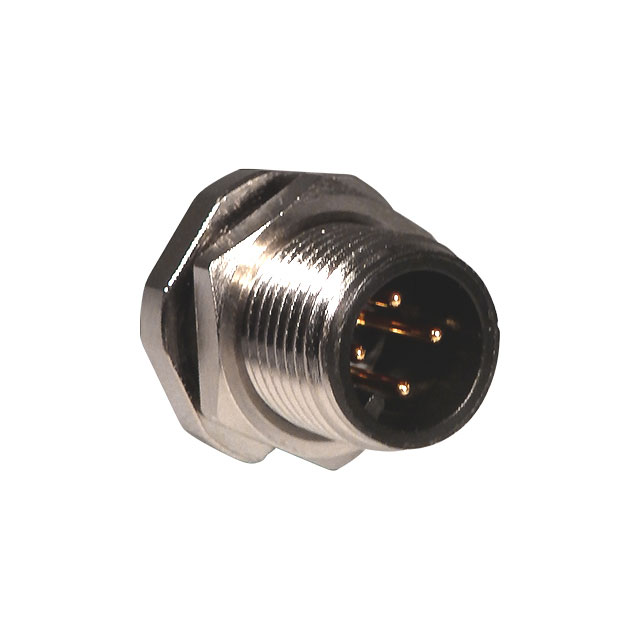

859-004-103R001

Active

MH Connectors

CONN RCPT MALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	859-004-103R001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	4 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Shielded
Voltage Rating	250 VDC

Part	Connector Type	Shell Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Insert Material	Color	Number of Positions	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Mounting Feature	Voltage Rating	Contact Material	Ingress Protection	Shell Finish	Material Flammability Rating	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating
MH Connectors 859-004-103R004	Male Pins Receptacle	Brass	Metal	85 °C	-40 °C	Shielded	Polybutylene Terephthalate (PBT)	Silver	4	A	10 çin	0.25 çm	M12-4	Bulkhead - Front Side Nut	250 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	UL94 V-0	Gold	4 A
MH Connectors 859-004-103R001	Male Pins Receptacle	Brass	Metal	85 °C	-40 °C	Shielded	Polybutylene Terephthalate (PBT)	Silver	4	A			M12-4	Bulkhead - Front Side Nut	250 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	UL94 V-0	Gold	4 A	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.09

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
