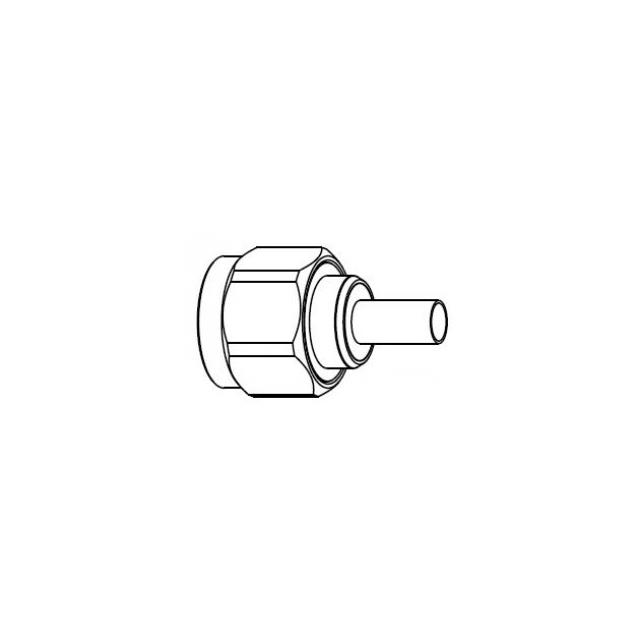

172142HEX

Active

Amphenol RF

N STRAIGHT CRIMP PLUG, RG55, RG1

Search across all available documentation for this part.

Active

Amphenol RF

N STRAIGHT CRIMP PLUG, RG55, RG1

Technical Specifications

Parameters and characteristics for this part

Specification	172142HEX

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Connector Type	Body Finish	Center Contact Material	Frequency - Max [Max]	Dielectric Material	Housing Color	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Cable Group	Impedance	Number of Ports	Connector Style	Center Contact Plating	Body Material	Mounting Type	Contact Termination	Shield Termination
Amphenol RF 172142HEX	Male Pin Plug	White Bronze	Brass	11 GHz	Polytetrafluoroethylene (PTFE)	Silver	1 Connector 1 Contact 1 Ferrule	140 °C	-40 °C	RG-55	142 223 400	50 Ohms	1	N Type	Gold	Brass	Free Hanging (In-Line)	Crimp Solder	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.37

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
