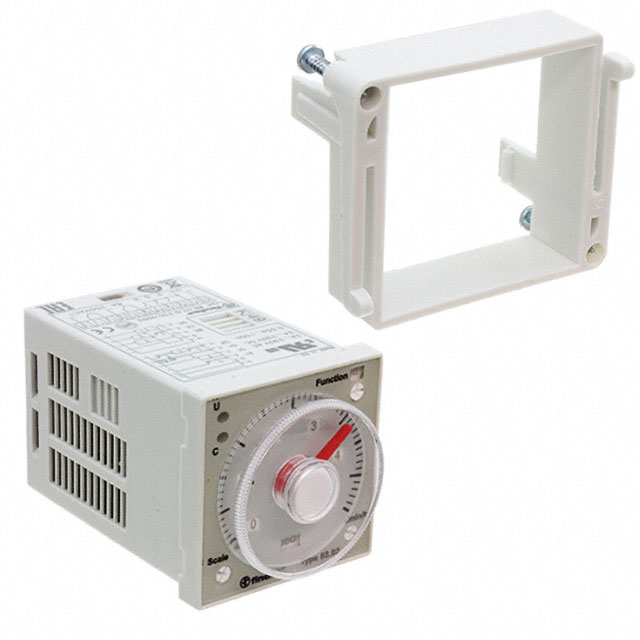

Specification	88.02.0.230.0002

Circuit	DPDT (2 Form C)
Contact Rating (Current)	8 A
Delay Time (Maximum)	100 Hrs
Delay Time (Minimum)	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Pin Count	11 pins
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage, Trigger Signal
Voltage - Supply (Maximum)	230 VAC
Voltage - Supply (Minimum)	24 VAC

88.02.0 Series

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Function	Contact Rating (Current)	Delay Time (Maximum)	Delay Time (Minimum)	Relay Type	Timing Initiate Method	Pin Count	Termination Style	Timing Adjustment Method	Mounting Type	Circuit
Finder Relays, Inc. 88.02.0.230.0002	24 VAC	230 VAC	Programmable (Multi-Function)	8 A	100 Hrs	0.05 Sec	Mechanical Relay	Input Voltage Trigger Signal	11 pins	Plug In	Hand Dial	Socketable	DPDT (2 Form C)
