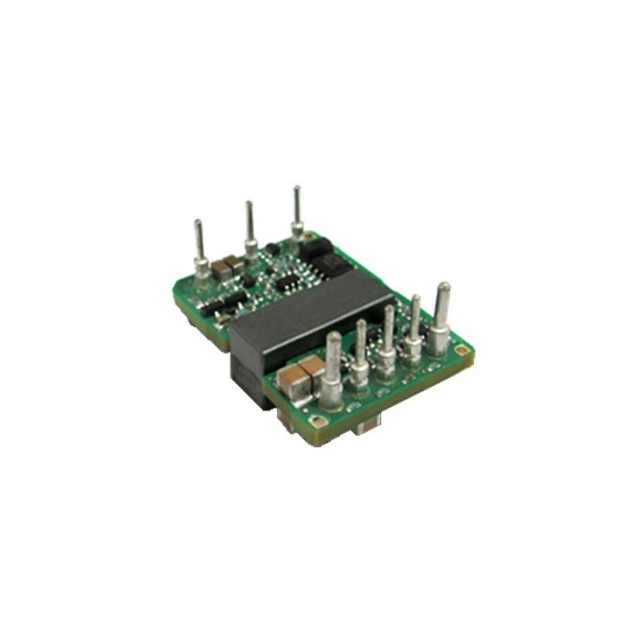

SRS3120N006N25W

Active

NetPower

DC DC CONVERTER 12V 72W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 12V 72W

Technical Specifications

Parameters and characteristics for this part

Specification	SRS3120N006N25W

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	6 A
Efficiency	91 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	72 W
Size / Dimension [x]	1.31 in
Size / Dimension [x]	33.3 mm
Size / Dimension [y]	23.1 mm
Size / Dimension [y]	0.91 in
Size / Dimension [z]	0.37 in
Size / Dimension [z]	9.3 mm
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

DC DC CONVERTER 12V 72W

Part	Control Features	Number of Outputs	Power (Watts)	Efficiency	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]	Package / Case	Supplier Device Package
NetPower SRS3120N006N25W	Active Low, Enable	1	72 W	91 %	ITE (Commercial)	18 V	6 A	85 °C	-40 °C	Adjustable Output, Remote On/Off, Remote Sense	0.37 in	9.3 mm	23.1 mm	1.31 in	0.91 in	33.3 mm	Through Hole	Isolated Module	1.5 kV	12 V	75 V	Sixteenth Brick	Sixteenth Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 42.50

General part information

Isolated Module DC DC Converter 1 Output 12V 6A 18V - 75V Input
