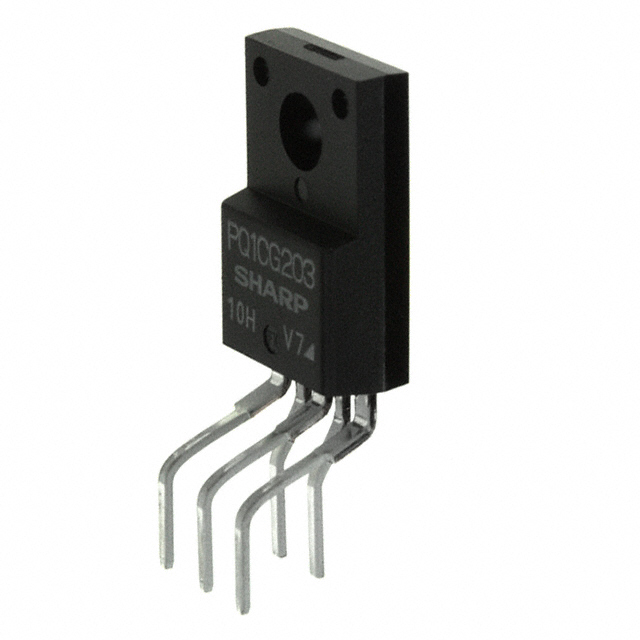

PQ1CG2032FZH

Unknown

SHARP/Socle Technology

IC REG BUCK ADJ 3.5A TO220-5

Search across all available documentation for this part.

Unknown

SHARP/Socle Technology

IC REG BUCK ADJ 3.5A TO220-5

Technical Specifications

Parameters and characteristics for this part

IC REG BUCK ADJ 3.5A TO220-5

Part	Output Configuration	Package / Case	Topology	Voltage - Output (Min/Fixed)	Output Type	Number of Outputs	Frequency - Switching	Current - Output	Voltage - Output (Max) [Max]	Voltage - Output (Max) [Min]	Function	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Max) [Max] [custom]	Synchronous Rectifier	Voltage - Input (Min) [Min]
SHARP/Socle Technology PQ1CG2032FZH	Positive or Negative	TO-220-5 Formed Leads	Buck	1.26 V	Adjustable	1	70 kHz	3.5 A	35 V	-30 V	Step-Down	TO-220-5	80 °C	-20 °C	Through Hole	35 V		8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 1.34

General part information

Buck Switching Regulator IC Positive or Negative Adjustable ±1.26V 1 Output 3.5A TO-220-5 Formed Leads
