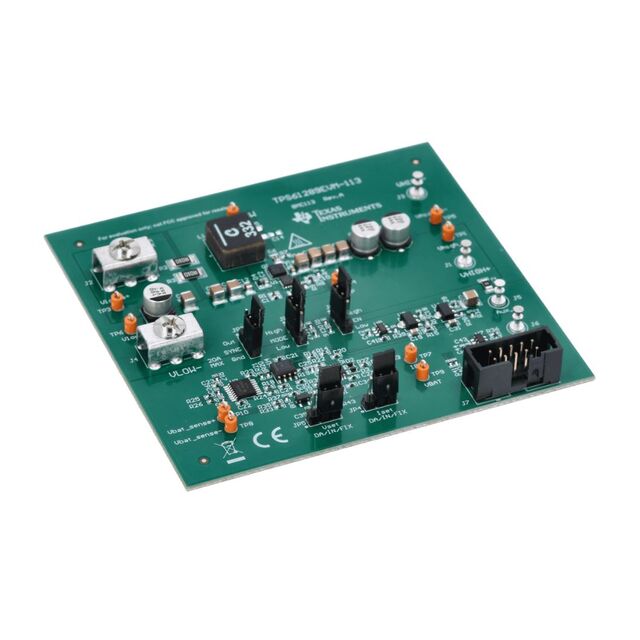

TPS61289EVM-113
ObsoleteTexas Instruments
EVAL BOARD FOR TPS61289
TPS61289EVM-113
ObsoleteTexas Instruments
EVAL BOARD FOR TPS61289
Description
General part information
TPS61289EVM-113
TPS61289 - 1 Non-Isolated Output DC/DC, Step Up or Down Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS61289EVM-113 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 15 A |
| Frequency - Switching | 250 kHz |
| Main Purpose | Step Up or Down, DC/DC |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck-Boost |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS61289 |
| Voltage - Input (Range 1) Maximum | 5 V |
| Voltage - Input (Range 1) Minimum | 0.5 V |
| Voltage - Input (Range 2) Maximum | 20 V |
| Voltage - Input (Range 2) Minimum | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
