CFT-90-WDS-X11-VA501

Active

Luminus Devices Inc.

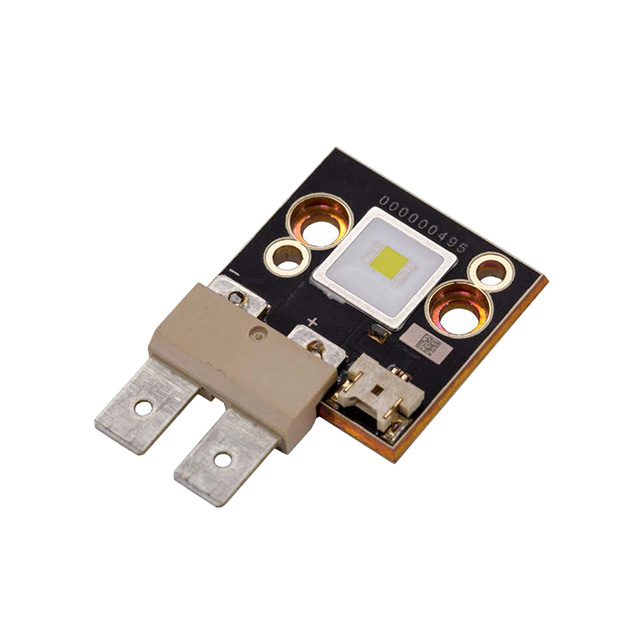

LED MOD CFT90W CL WH RECT 5600K

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED MOD CFT90W CL WH RECT 5600K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFT-90-WDS-X11-VA501	CFT-90 Series

CCT (K)	5600 K	5600 - 7800 K
Color	Cool, White	Cool, White
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	-	65 - 70
Current - Max [Max]	27 A	27 A
Current - Test	22.5 A	22.5 A
Features	With Connector	With Connector
Height [z]	3.93 mm	3.93 - 5.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [x]	3 mm	3 mm
Light Emitting Surface (LES) [y]	3 mm	3 mm
Lumens/Watt @ Current - Test	56 lm/W	52 - 61 lm/W
Luminous Flux @ Current/Temperature	4388 lm	4093 - 4800 lm
Luminous Flux @ Current/Temperature [Max]	4545 lm	4230 - 4545 lm
Luminous Flux @ Current/Temperature [Min]	4230 lm	3955 - 4230 lm
Size / Dimension [x]	28 mm	28 - 42 mm
Size / Dimension [y]	26.75 mm	26.75 - 28 mm
Temperature - Test	90 °C	90 °C
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.5 V	3.5 V

LED MOD CFT90W CL WH RECT 5600K

Part	Viewing Angle	Type	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Current - Test	Height [z]	Current - Max [Max]	Color	Lens Type	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Voltage - Forward (Vf) (Typ)	Temperature - Test	CCT (K)	Lumens/Watt @ Current - Test	Features	Configuration	CRI (Color Rendering Index)
Luminus Devices Inc. CFT-90-WDS-X11-VA501	120 °	LED Module	26.75 mm	28 mm	4388 lm	4545 lm	4230 lm	22.5 A	3.93 mm	27 A	Cool, White	Flat	3 mm	3 mm	3.5 V	90 °C	5600 K	56 lm/W	With Connector	Rectangle
Luminus Devices Inc. CFT-90-WCS-X11-UB601	120 °	LED Module	26.75 mm	28 mm	4093 lm	4230 lm	3955 lm	22.5 A	3.93 mm	27 A	Cool, White	Flat	3 mm	3 mm	3.5 V	90 °C	6500 K	52 lm/W	With Connector	Rectangle	70
Luminus Devices Inc. CFT-90-WDS-X11-UB500	120 °	LED Module	28 mm	42 mm	4800 lm			22.5 A	5.7 mm	27 A	White	Flat	3 mm	3 mm	3.5 V	90 °C		61 lm/W		Rectangle	65
Luminus Devices Inc. CFT-90-WSS-X11-VB700	120 °	LED Module	26.75 mm	28 mm	4703 lm			22.5 A	3.93 mm	27 A	Cool, White	Flat	3 mm	3 mm	3.5 V	90 °C	7800 K	60 lm/W	With Connector	Rectangle	70

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 112.67

General part information

LED Lighting COBs Engines Modules LED Module CFT-90-W White, Cool Rectangle

Technical documentation and resources
