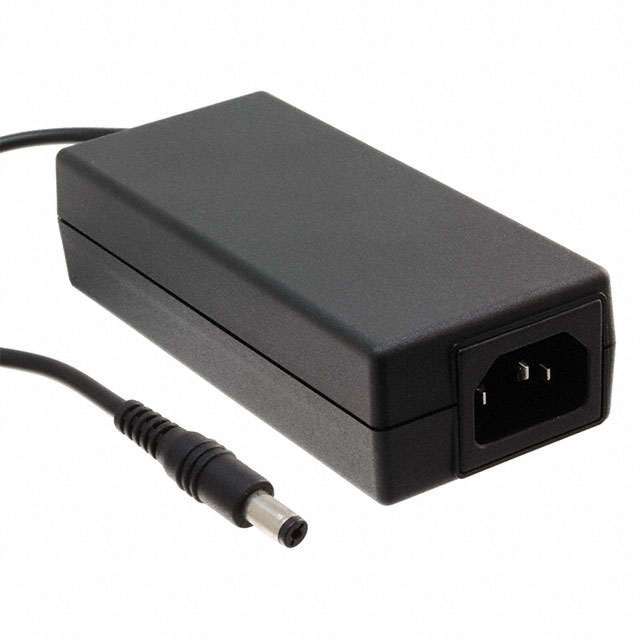

DPS-40AB-11 B

Obsolete

Delta Electronics

AC/DC DESKTOP ADAPTER 12V 40W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC DESKTOP ADAPTER 12V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	DPS-40AB-11 B

Applications	ITE (Commercial)
Approval Agency	NOM, CB, cULus, KC, GS, CE, RCM, CCC, BSMI, PSE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3.33 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	115 mm
Size / Dimension [x]	4.53 "
Size / Dimension [y]	51.5 mm
Size / Dimension [y]	2.03 in
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Region Utilized	Input Type	Cord Length	Cord Length	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Approval Agency	Output Connector [z]	Output Connector [diameter]	Output Connector	Applications	Polarization	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Form	Efficiency	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Features	Current - Output 1	Mounting Type	Type	Number of Outputs
Delta Electronics DPS-40AB-11 B	International	Cord	1.2 m	47.2 in	12 V	90 VAC	264 VAC	3.33 A	BSMI CB CCC CE cULus GS KC NOM PSE RCM	10 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Positive Center	IEC 320-C14	40 °C	0 °C	Desktop (Class I)	Level VI	40 W	115 mm	30.5 mm	1.2 "	51.5 mm	2.03 in	4.53 "
Delta Electronics DPS-40AP-10 A						90 VAC	264 VAC		BSMI CB CCC CE cURus D-Mark TUV				ITE (Commercial)			70 °C	0 °C			40 W	95 mm		1.2 "		1.97 "	3.74 "	3000 V	12 V	50 mm	30.5 mm	87 %	Universal Input	3.33 A	Chassis Mount	Open Frame	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12V 40 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
