ERM5-020-04.0-L-DV-K-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.50 MM EDGE RATE RUGGED HIGH SPEED TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERF5 Series Other Related Documents 03 +3

ERM5-020-04.0-L-DV-K-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.50 MM EDGE RATE RUGGED HIGH SPEED TERMINAL

Deep-Dive with AI

DocumentsDatasheet ERF5 Series Other Related Documents 03 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM5-020-04.0-L-DV-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.27 in
Height Above Board	6.85 mm
Mated Stacking Heights	9 mm, 11 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

ERM5-020 Series

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Terminal

Part	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Mounting Type	Mated Stacking Heights	Number of Positions	Connector Type	Height Above Board	Height Above Board
Samtec Inc. ERM5-020-04.0-L-DV-K-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Pick and Place	Surface Mount	9 mm 11 mm	40	Header Outer Shroud Contacts	0.27 in	6.85 mm
Samtec Inc. ERM5-005-05.0-L-DV-WT-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Solder Retention	Surface Mount	10 mm 12 mm	10	Header Outer Shroud Contacts	0.309 in	7.85 mm
Samtec Inc. ERM5-020-04.0-L-DV-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide	Surface Mount	9 mm 11 mm	40	Header Outer Shroud Contacts	0.27 in	6.85 mm
Samtec Inc. ERM5-020-05.0-L-DV-WT-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Solder Retention	Surface Mount	10 mm 12 mm	40	Header Outer Shroud Contacts	0.309 in	7.85 mm
Samtec Inc. ERM5-020-02.0-L-DV-FL-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Friction Lock	Surface Mount	7 mm 9 mm	40	Header Outer Shroud Contacts	0.191 in	4.85 mm
Samtec Inc. ERM5-020-02.0-L-DV-WT-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Solder Retention	Surface Mount	7 mm 9 mm	40	Header Outer Shroud Contacts	0.191 in	4.85 mm
Samtec Inc. ERM5-010-02.0-S-DV-FL-P-TR	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám	2	Board Guide Friction Lock Pick and Place	Surface Mount	7 mm 9 mm	20	Header Outer Shroud Contacts	0.191 in	4.85 mm

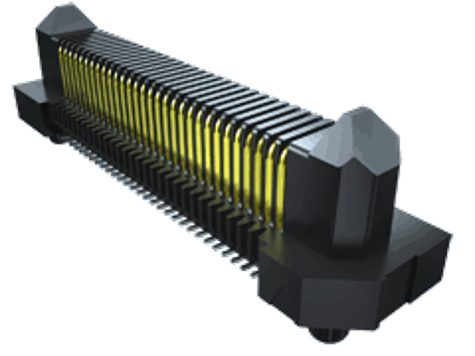

Samtec Inc. ERM5-020-05.0-S-DV-K-TR	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám	2	Board Guide Pick and Place	Surface Mount	10 mm 12 mm	40	Header Outer Shroud Contacts	0.309 in	7.85 mm
Samtec Inc. ERM5-020-04.0-S-DV-K-TR	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám	2	Board Guide Pick and Place	Surface Mount	9 mm 11 mm	40	Header Outer Shroud Contacts	0.27 in	6.85 mm
Samtec Inc. ERM5-020-05.0-L-DV-FL-K-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Friction Lock Pick and Place	Surface Mount	10 mm 12 mm	40	Header Outer Shroud Contacts	0.309 in	7.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.35
		50	$ 3.07
		100	$ 2.88
	Digi-Reel®	1	$ 3.35
		50	$ 3.07
		100	$ 2.88
	Tape & Reel (TR)	375	$ 2.60
		750	$ 2.55
		1125	$ 2.21
Sager	N/A	1	$ 3.35
		50	$ 3.07
		100	$ 2.88
		375	$ 2.60
		750	$ 2.55
		1125	$ 2.17
		2625	$ 2.07
		5250	$ 2.00

Description

General part information

ERM5-020 Series

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Terminal
