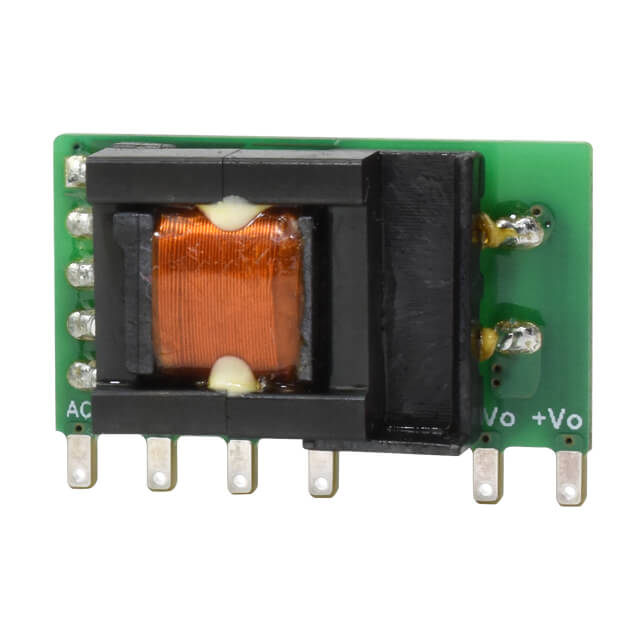

Specification	PBO-5C-3

Applications	ITE (Commercial), Household Appliances
Approval Agency	cURus, CE
Current - Output (Max)	1 A
Efficiency	69 %
Line Regulation	1.5 %
Load Regulation (Percent)	3 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	6-SIP Module
Power (Watts)	3.3 W
Size / Dimension Height	0.58 in
Size / Dimension Length	1.04 in
Size / Dimension Width	0.43 in
Standard Number	60335-1, 62368-1
Type	Open Frame
Voltage - Input (AC) Maximum	305 VAC
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	430 V
Voltage - Input (DC) Minimum	70 VDC
Voltage - Output 1	3.3 V

PBO-5 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Load Regulation (Percent)	Voltage - Input (DC) Minimum	Voltage - Input (DC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Efficiency	Standard Number	Voltage - Output 1	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Applications	Mounting Type	Current - Output (Max)	Package / Case	Number of Outputs	Approval Agency	Power (Watts)	Type	Line Regulation	Weight	Package Name	Package Leads	Features
CUI Inc. PBO-5C-5	85 °C	-40 °C	3 %	70 VDC	430 V	85 VAC	305 VAC	76 %	60335-1 62368-1	5 V	0.43 in	1.04 in	0.58 in	Household Appliances ITE (Commercial)	Through Hole	1 A	6-SIP Module	1	CE cURus	5 W	Open Frame	1.5 %
CUI Inc. PBO-5C-12	85 °C	-40 °C	3 %	70 VDC	430 V	85 VAC	305 VAC	79 %	60335-1 62368-1	12 V	0.43 in	1.04 in	0.58 in	Household Appliances ITE (Commercial)	Through Hole	420 mA	6-SIP Module	1	CE cURus	5 W	Open Frame	1.5 %
CUI Inc. PBO-5C-15	85 °C	-40 °C	3 %	70 VDC	430 V	85 VAC	305 VAC	79 %	60335-1 62368-1	15 V	0.43 in	1.04 in	0.58 in	Household Appliances ITE (Commercial)	Through Hole	340 mA	6-SIP Module	1	CE cURus	5 W	Open Frame	1.5 %
CUI Inc. PBO-5C-3	85 °C	-40 °C	3 %	70 VDC	430 V	85 VAC	305 VAC	69 %	60335-1 62368-1	3.3 V	0.43 in	1.04 in	0.58 in	Household Appliances ITE (Commercial)	Through Hole	1 A	6-SIP Module	1	CE cURus	3.3 W	Open Frame	1.5 %
CUI Inc. PBO-5-S9	85 °C	-25 °C	1.5 %	100 V	400 V	85 VAC	264 V	75 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 62368-1	9 V	0.5 in	1.57 in	0.79 in	ITE (Commercial)	Through Hole	560 mA		1	CB Scheme EN IEC UL	5 W	Open Frame	0.5 %	0.016 lb	14-SIP Module	6 Leads	Universal Input
CUI Inc. PBO-5-S24-B	85 °C	-25 °C	1.5 %	100 V	400 V	85 VAC	264 V	79 %	55024 55032 Class A 60950-1 62368-1	24 V	0.79 in	1.57 in	0.5 in	ITE (Commercial)	Right Angle Through Hole	210 mA		1	CB Scheme EN IEC UL	5 W	Open Frame	0.5 %		14-SIP Module	6 Leads	Universal Input
CUI Inc. PBO-5-S9-B	85 °C	-25 °C	1.5 %	100 V	400 V	85 VAC	264 V	75 %	55024 55032 Class A 60950-1 62368-1	9 V	0.79 in	1.57 in	0.5 in	ITE (Commercial)	Right Angle Through Hole	560 mA		1	CB Scheme EN IEC UL	5 W	Open Frame	0.5 %		14-SIP Module	6 Leads	Universal Input
CUI Inc. PBO-5C-24	85 °C	-40 °C	3 %	70 VDC	430 V	85 VAC	305 VAC	81 %	60335-1 62368-1	24 V	0.43 in	1.04 in	0.58 in	Household Appliances ITE (Commercial)	Through Hole	210 mA	6-SIP Module	1	CE cURus	5 W	Open Frame	1.5 %
CUI Inc. PBO-5-S12	85 °C	-25 °C	1.5 %	100 V	400 V	85 VAC	264 V	76 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 62368-1	12 V	0.5 in	1.57 in	0.79 in	ITE (Commercial)	Through Hole	420 mA		1	CB Scheme EN IEC UL	5 W	Open Frame	0.5 %	0.016 lb	14-SIP Module	6 Leads	Universal Input
CUI Inc. PBO-5C-9	85 °C	-40 °C	3 %	70 VDC	430 V	85 VAC	305 VAC	77 %	60335-1 62368-1	9 V	0.43 in	1.04 in	0.58 in	Household Appliances ITE (Commercial)	Through Hole	560 mA	6-SIP Module	1	CE cURus	5 W	Open Frame	1.5 %
