0.375-5-9325

Active

3M (TC)

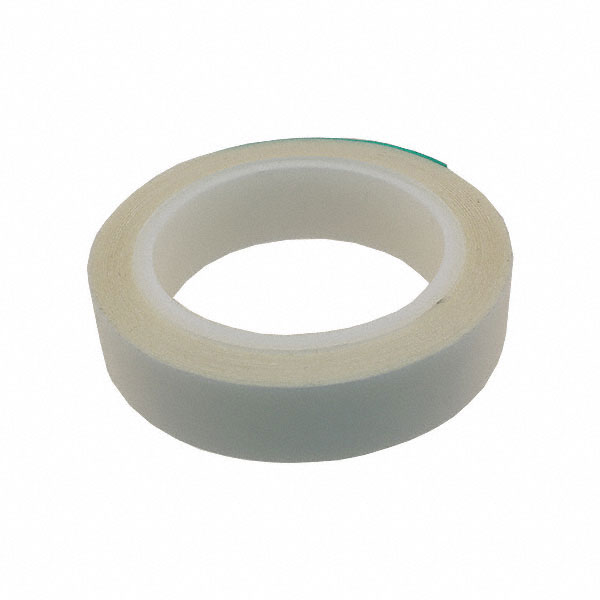

TAPE MASKING CLEAR 3/8"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0.375-5-9325

Active

3M (TC)

TAPE MASKING CLEAR 3/8"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0.375-5-9325

Adhesive	Acrylic
Backing, Carrier	UHMW Polyethylene
Color	Clear
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Masking
Temperature Range [Max]	107 °C
Temperature Range [Max]	225 °F
Temperature Range [Min]	-30 °F
Temperature Range [Min]	-34 °C
Thickness	0.0053 "
Thickness	0.135 mm
Thickness	5.3 mils
Thickness - Adhesive	0.0023 "
Thickness - Adhesive	2.3 mils
Thickness - Adhesive	0.058 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Width	0.375 in
Width	9.65 mm
Width	0.38 in

9325 Series

Part	Adhesive	Width [y]	Width [y]	Thickness	Thickness	Thickness	Backing, Carrier	Length	Length	Length	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Tape Type	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life Start	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life	Width [x]	Width [x]	Width	Width	Width	Width	Thickness - Adhesive [x]	Usage
3M (TC) 2-36-9325	Acrylic	2 "	50.8 mm	0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months
3M (TC) 6-36-9325	Acrylic			0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months	6 in	152.4 mm
3M (TC) 3M 9325 0.375" X 36YD	Acrylic			0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months			0.375 in	9.65 mm	0.38 in
3M (TC) 0.375-5-9325	Acrylic			0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	5 yd	4.6 m	15 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months			0.375 in	9.65 mm	0.38 in
3M (TC) 3M 9325 1.625" X 36YD	Acrylic			0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months					1.63 in 41.28 mm	1 5/8
3M (TC) 3M 9325 2.5" X 36YD	Acrylic			0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months				63.5 mm	2.5 in
3M (TC) 9325-3-5	Acrylic			0.005 in	0.127 mm	5 mils	UHMW Polyethylene	5 yd	4.6 m	15 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C		2 mils	0.051 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months	3 in	76.2 mm					0.002 "	Automotive
3M (TC) 6-5-9325	Acrylic			0.005 in	0.127 mm	5 mils	UHMW Polyethylene	5 yd	4.6 m	15 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C		2 mils	0.051 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months	6 in	152.4 mm					0.002 "	Automotive
3M (TC) 3M 9325 0.875" X 36YD	Acrylic			0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months			0.875 in	22.35 mm	0.88 in
3M (TC) 3M 9325 0.25" X 36YD	Acrylic			0.0053 "	0.135 mm	5.3 mils	UHMW Polyethylene	36 yd	32.9 m	108 ft	16 °C 60 °F	27 °C 80 °F	Masking	107 °C	-30 °F	225 °F	-34 °C	0.0023 "	2.3 mils	0.058 mm	Date of Manufacture	Clear	0.003 in	3 mils	0.076 mm	18 Months			0.25 in	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 38.20

Description

General part information

9325 Series

Masking Tape Acrylic Adhesive Clear 0.38" (9.65mm) 3/8" X 15' (4.6m) 5 yds
