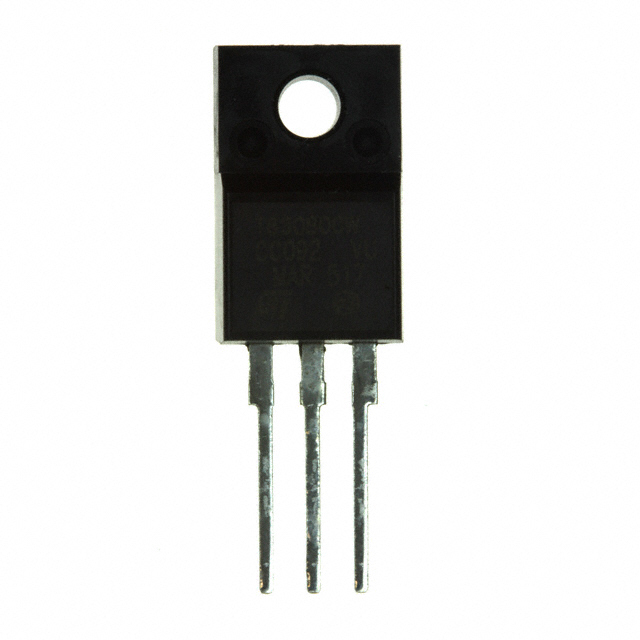

T830-800W
ActiveSTMicroelectronics
TRIAC ALTERNISTOR 800V ISOWATT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T830-800W
ActiveSTMicroelectronics
TRIAC ALTERNISTOR 800V ISOWATT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T830-800W | T830 Series |
|---|---|---|
| Configuration | Single | Single |
| Current - Gate Trigger (Igt) (Max) [Max] | 30 mA | 30 mA |
| Current - Hold (Ih) (Max) [Max] | 50 mA | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | 105 A | 84 - 105 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | 100 A | 80 - 100 A |
| Current - On State (It (RMS)) (Max) [Max] | 8 A | 8 A |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | ISOWATT220AB-3 | ISOWATT220AB-3, TO-220-3 Full Pack |
| Supplier Device Package | ISOWATT220AB | ISOWATT220AB, TO-220FPAB |
| Triac Type | Alternistor - Snubberless | Alternistor - Snubberless |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.3 V | 1.3 V |
| Voltage - Off State | 800 V | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
T830 Series
TRIAC ALTERNISTOR 800V ISOWATT
| Part | Current - Hold (Ih) (Max) [Max] | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Configuration | Mounting Type | Voltage - Off State | Operating Temperature [Min] | Operating Temperature [Max] | Triac Type | Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | Current - On State (It (RMS)) (Max) [Max] | Supplier Device Package | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics T830-800W | 50 mA | 1.3 V | 30 mA | Single | Through Hole | 800 V | -40 °C | 125 ¯C | Alternistor - Snubberless | 105 A | 100 A | 8 A | ISOWATT220AB | ISOWATT220AB-3 |
STMicroelectronics T830-8FP | 50 mA | 1.3 V | 30 mA | Single | Through Hole | 800 V | -40 °C | 125 ¯C | Alternistor - Snubberless | 84 A | 80 A | 8 A | TO-220FPAB | TO-220-3 Full Pack |
Description
General part information
T830 Series
TRIAC Alternistor - Snubberless 800 V 8 A Through Hole ISOWATT220AB
