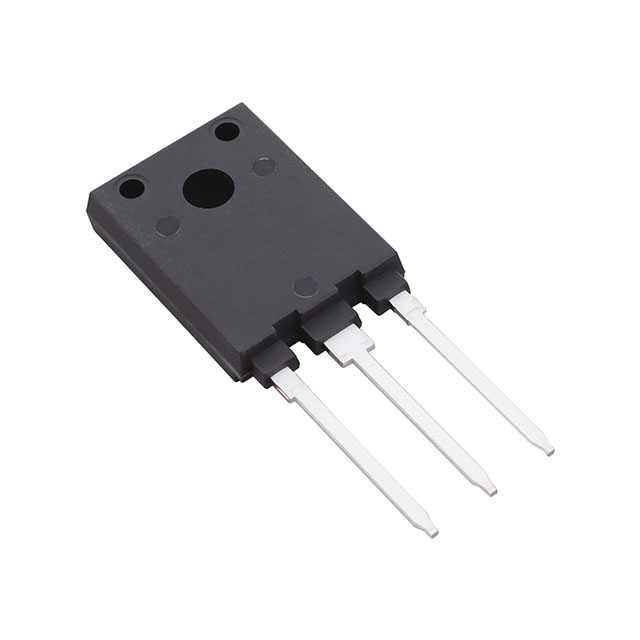

IHFW40N65R5SXKSA1

LTB

Infineon Technologies

IGBT, 61 A, 1.5 V, 108 W, 650 V, 3 PINS

Search across all available documentation for this part.

LTB

Infineon Technologies

IGBT, 61 A, 1.5 V, 108 W, 650 V, 3 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	IHFW40N65R5SXKSA1

Current - Collector (Ic) (Max) [Max]	61 A
Current - Collector Pulsed (Icm)	120 A
Gate Charge	142 nC
IGBT Type	Trench Field Stop
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	TO-247-3
Power - Max [Max]	108 W
Reverse Recovery Time (trr)	103 ns
Switching Energy	1.52 mJ, 700 µJ
Td (on/off) @ 25°C	44 ns, 363 ns
Test Condition	40 A, 15 V, 400 V, 23.1 Ohm
Vce(on) (Max) @ Vge, Ic	2 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Test Condition	IGBT Type	Current - Collector (Ic) (Max) [Max]	Switching Energy	Package / Case	Reverse Recovery Time (trr)	Td (on/off) @ 25°C	Current - Collector Pulsed (Icm)	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Gate Charge	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Vce(on) (Max) @ Vge, Ic
Infineon Technologies IHFW40N65R5SXKSA1	15 V 23.1 Ohm 40 A 400 V	Trench Field Stop	61 A	1.52 mJ 700 µJ	TO-247-3	103 ns	44 ns 363 ns	120 A	108 W	650 V	142 nC	-40 C	175 °C	Through Hole	2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Trench Field Stop 650 V 61 A 108 W Through Hole PG-HSIP247-3-2
