6380-5SG-516

Active

Conxall/Switchcraft

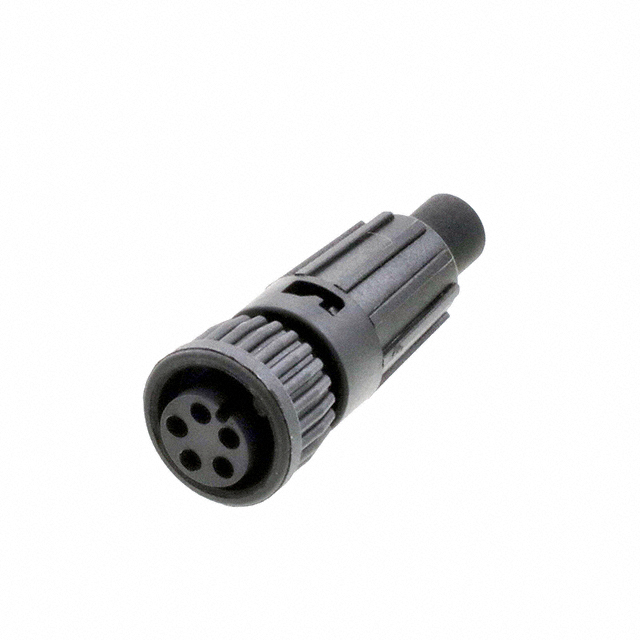

CONN PLUG FMALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-5SG-516

Active

Conxall/Switchcraft

CONN PLUG FMALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.92
		10	$ 7.91
		25	$ 7.60
		50	$ 7.30
		100	$ 7.14

Description

General part information

6380-5SG Series

5 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6380-5SG-516	6380-5SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	0.21 - 0.25 in
Cable Opening	-	0.19 - 0.22 in
Cable Opening	-	4.83 - 5.59 mm
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	5.84 mm
Cable Opening [Max] [custom]	0.18 in	0.18 - 0.2 in
Cable Opening [Max] [custom]	4.57 mm	4.57 - 5.08 mm
Cable Opening [Min] [custom]	0.16 in	0.16 - 0.18 in
Cable Opening [Min] [custom]	4.06 mm	4.06 - 4.57 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6380-5SG Series

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Contact Material	Orientation	Backshell Material, Plating	Color	Primary Material	Features	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Finish - Mating	Connector Type	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Mounting Type	Fastening Type	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6380-5SG-315	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight	0.15 in, 0.17 in	3.81 mm, 4.32 mm	600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded
Conxall/Switchcraft 6380-5SG-519	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight			600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded	0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6380-5SG-318	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight			600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6380-5SG-516	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight			600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded					4.06 mm	0.16 in	0.18 in	4.57 mm
Conxall/Switchcraft 6380-5SG-3DC	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight			600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded
Conxall/Switchcraft 6380-5SG-522	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight			600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded	0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6380-5SG-311	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight			600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded									2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6380-5SG-321	Brass	Keyed	Nylon, Polyamide (PA)	Black	Plastic	Backshell	Varies by Wire Gauge	Crimp	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	Gold	Female Sockets, Plug	Weathertight			600 V	Free Hanging (In-Line)	Bayonet Lock	Unshielded	0.23 in	0.21 in	5.33 mm									5.84 mm
