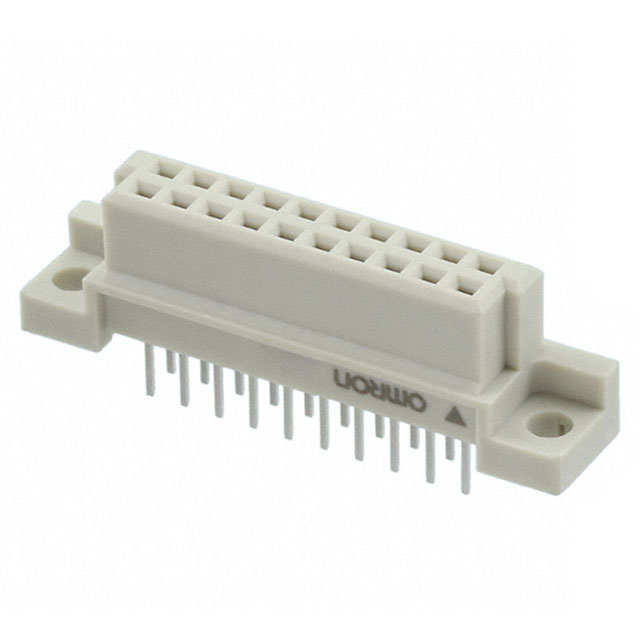

Specification	XC5B-0121-A

Connector Type	Receptacle, Female Sockets
Current Rating	2 A
Material - Insulation	Glass Filled, PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	100
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	B

XC5B Series

Part	Material Flammability Rating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Mounting Type	Contact Finish	Pitch	Number of Positions Loaded	Termination	Contact Finish Thickness	Number of Positions	Connector Type	Style	Number of Rows
Omron Electronics Inc-EMC Div XC5B-2431-3	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole	Gold	0.1 in	All	Solder	16 µin	24 pos	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-3031-3A	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole		0.1 in				30	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-3231-0	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole	Gold	0.1 in	All	Solder	16 µin	32	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-6421-A	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole	Gold	0.1 in	All	Solder	16 µin	64	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-3221	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole	Gold	0.1 in	All	Solder	16 µin	32	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-0121-A	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole		0.1 in				100	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-6431-0A	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole	Gold	0.1 in	All	Solder	16 µin	64	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-2021	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole	Gold	0.1 in	All	Solder	16 µin	20	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-2031-0A	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole		0.1 in				20	Female Sockets Receptacle	B	2
Omron Electronics Inc-EMC Div XC5B-1031-S036	UL94 V-0	2 A	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate	Through Hole	Gold	0.1 in	All	Solder	16 µin	10	Female Sockets Receptacle	B	2
