M6,TRRD

Active

Serpac

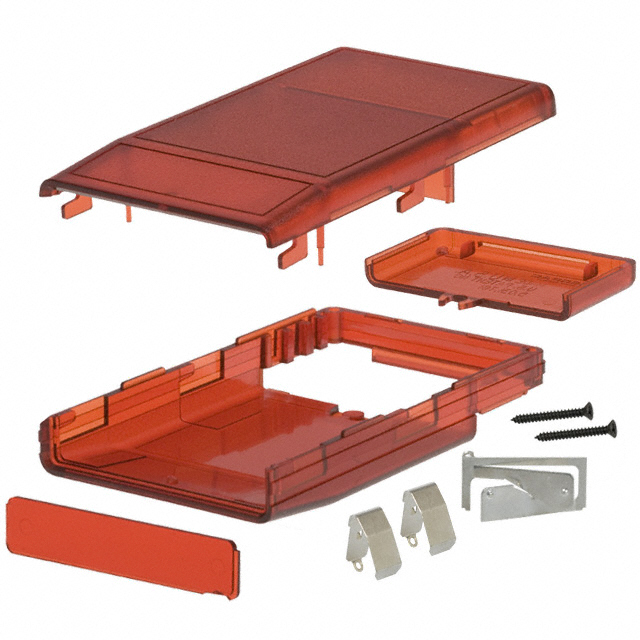

BOX ABS TRN RED 4.15"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS TRN RED 4.15"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	M6,TRRD

Area (L x W)	64.3 cm²
Area (L x W)	9.96 in²
Color	Translucent - Red
Container Type	Box
Features	Battery Compartment, 9V and AA
Height [z]	0.85 in
Height [z]	21.59 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	4.15 "
Size / Dimension [x]	105.41 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	60.96 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.11 lb
Weight	49.9 g

Part	Weight	Weight	Container Type	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thickness	Thickness	Color	Material Flammability Rating	Material
Serpac M6,TRGY	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Gray	UL94 HB	Plastic ABS
Serpac M6,TRRD	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Red	UL94 HB	Plastic ABS
Serpac M6,TRGR	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Green	UL94 HB	Plastic ABS
Serpac M6,GY	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Gray	UL94 HB	Plastic ABS
Serpac M6,TRBL	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Blue	UL94 HB	Plastic ABS
Serpac M6,BK	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Black	UL94 HB	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 21.38

General part information

Box Plastic, ABS Translucent - Red Hand Held, Split Sides and End Panel(s) 4.150" L x 2.400" W (105.41mm x 60.96mm) X 0.850" (21.59mm)

Technical documentation and resources

No documents available
