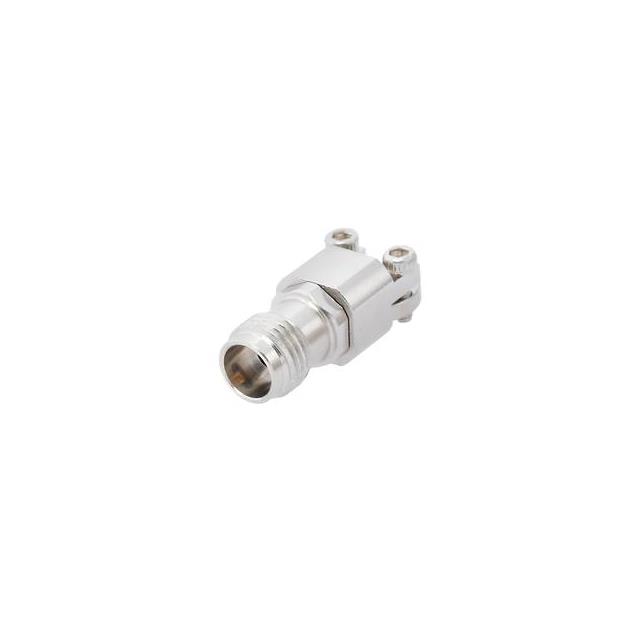

NE02FS001

Active

WITHWAVE CO LTD

END LAUNCH 2.4 MM CONNECTOR (NAR

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH 2.4 MM CONNECTOR (NAR

Technical Specifications

Parameters and characteristics for this part

END LAUNCH 2.4 MM CONNECTOR (NAR

Part	Center Contact Material	Mounting Type	Connector Type	Shield Termination	Number of Ports	Body Material	Housing Color	Center Contact Plating	Connector Style	Connector Style	Connector Style	Contact Termination	Body Finish	Impedance	Frequency - Max [Max]
WITHWAVE CO LTD NE02FS001	Beryllium Copper	Board Edge, End Launch	Female Socket, Receptacle	Screw	1	Brass	Silver	Gold	OS-50	2.4 mm	APC-2.4	Compression	Nickel	50 Ohms	50 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
