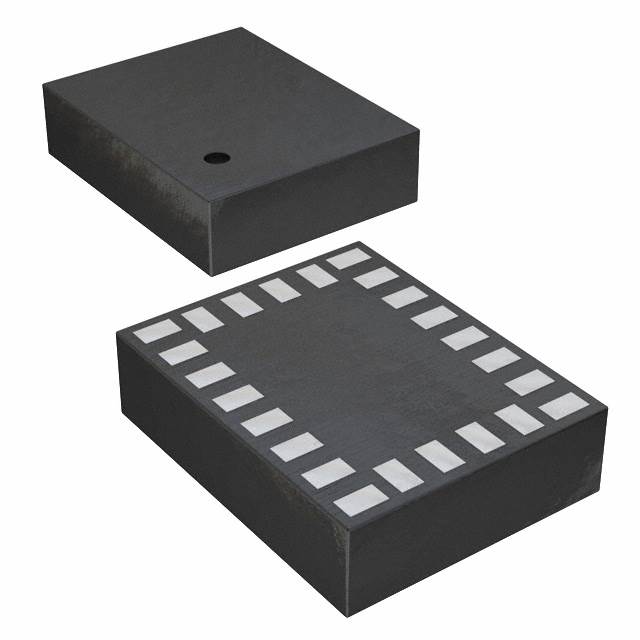

LSM9DS1TR

Obsolete

STMicroelectronics

IMU ACCEL/GYRO/MAG I2C/SPI 24LGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSM9DS1TR

Obsolete

STMicroelectronics

IMU ACCEL/GYRO/MAG I2C/SPI 24LGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSM9DS1TR

Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C, SPI
Package / Case	24-TFLGA Module
Sensor Type	Magnetometer, 9 Axis, Temperature, Gyroscope, Accelerometer
Supplier Device Package	24-LGA (3x3.5)

STEVAL-MKI159V1 Series

LSM9DS1 adapter board for standard DIL24 socket

Part	Sensor Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Type	Supplier Device Package	Contents	Interconnect System	Function	Platform	Utilized IC / Part	Suggested Programming Environment	Type
STMicroelectronics LSM9DS1TR	9 Axis Accelerometer Gyroscope Magnetometer Temperature	Surface Mount	85 °C	-40 °C	24-TFLGA Module	I2C SPI	24-LGA (3x3.5)
STMicroelectronics STEVAL-MKI159V1								Board(s)	DIL24	Accelerometer Gyroscope Magnetometer	Professional MEMS Tool	LSM9DS1	Unico	Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 29.95
		5	$ 25.26
		10	$ 23.47
		25	$ 21.30
		50	$ 19.80
		100	$ 18.40
		500	$ 15.73
	Digi-Reel®	1	$ 29.95
		5	$ 25.26
		10	$ 23.47
		25	$ 21.30
		50	$ 19.80
		100	$ 18.40
		500	$ 15.73

Description

General part information

STEVAL-MKI159V1 Series

The STEVAL-MKI159V1 is an adapter board designed to facilitate the evaluation of MEMS inertial devices in the LSM9DS1 product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user's own application.The STEVAL-MKI159V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM9DS1 pinout and comes ready to use with the required decoupling capacitors on the VDDpower supply line.

This adapter is supported by the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards which include a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI) or dedicated software routines for customized applications.
