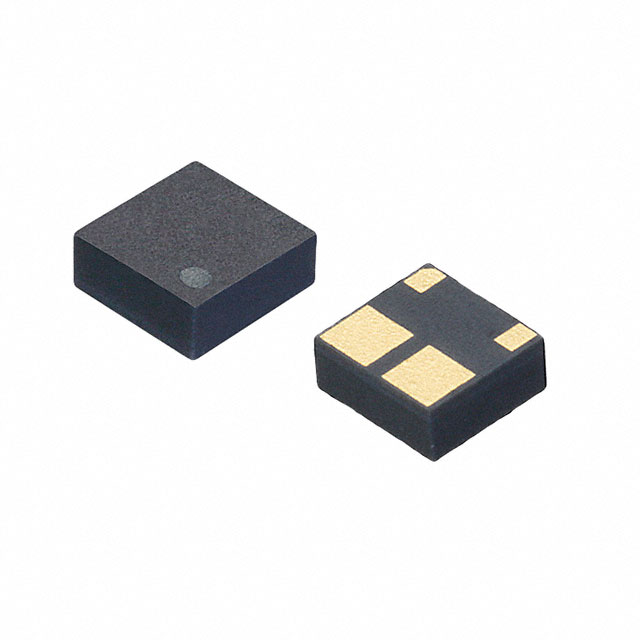

AQY2C1R6P1X

Active

Panasonic Electric Works

SSR RELAY SPST-NO 750MA 0-30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SSR RELAY SPST-NO 750MA 0-30V

Technical Specifications

Parameters and characteristics for this part

Part	On-State Resistance (Max) [Max]	Package / Case	Package / Case	Package / Case	Mounting Type	Output Type	Termination Style	Voltage - Input	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency
Panasonic Electric Works AQY2C1R3P	15 Ohm	4-SMD	1.8 mm	0.071 in	Surface Mount	AC DC	SMD (SMT) Tab	2.2 V	85 °C	-40 °C	100 mA	1.8	4-TSON (1.95x1.8)	1.95
Panasonic Electric Works AQY2C1R6P1X	400 mOhms	4-SMD	1.8 mm	0.071 in	Surface Mount	AC DC	SMD (SMT) Tab	1.7 VDC	85 °C	-40 °C	0.75 A		4-TSON		0 V	30 V	BSI cURus
Panasonic Electric Works AQY2C1R2P	1.5 Ohms	4-SMD	1.8 mm	0.071 in	Surface Mount	AC DC	SMD (SMT) Tab	1.8 VDC	85 °C	-40 °C	300 mA		4-TSON
Panasonic Electric Works AQY2C1R2P1X	1.5 Ohms	4-SMD	1.8 mm	0.071 in	Surface Mount	AC DC	SMD (SMT) Tab	1.8 VDC	85 °C	-40 °C	300 mA		4-TSON				BSI cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 4-SMD (0.071", 1.80mm)
