346-047-500-108
ActiveEDAC Inc.

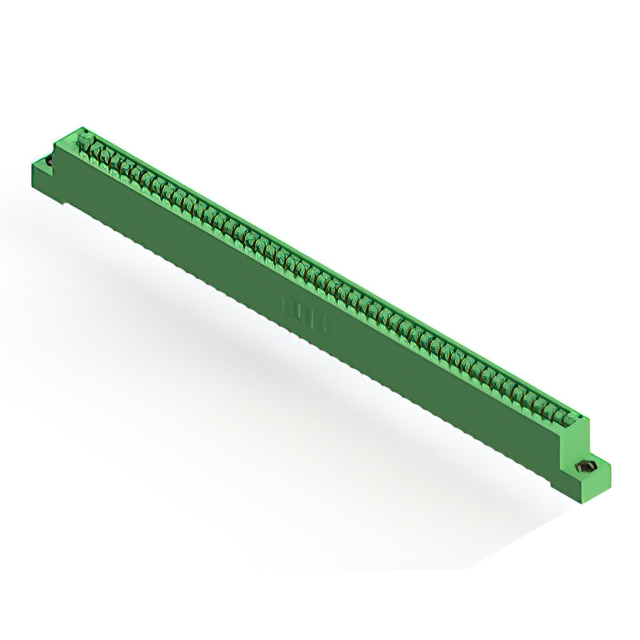

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 47 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-047-500-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 47 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-047-500-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 47 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
346-047 Series
...
| Part | Gender | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Color | Material - Insulation | Contact Type | Termination | Pitch [x] | Pitch [x] | Contact Material | Number of Rows | Flange Feature | Flange Feature | Flange Feature | Read Out | Card Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Solder Wire Wrap | 0.125 in | 3.18 mm | Copper Alloy | 1 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Single | Non Specified - Single Edge | |||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Solder Wire Wrap | 0.125 in | 3.18 mm | Copper Alloy | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Single | Non Specified - Single Edge | Card Guides | ||||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Solder Wire Wrap | 0.125 in | 3.18 mm | Copper Alloy | 1 | 3.25 mm | 0.128 in | Single | Non Specified - Single Edge | ||||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Solder Eyelet(s) | 0.125 in | 3.18 mm | Copper Alloy | 1 | Top Mount Opening Unthreaded | Single | Non Specified - Single Edge | 0.156 in | 3.96 mm | |||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Wire Wrap | 0.125 in | 3.18 mm | Copper Alloy | 1 | 4-40 Threaded Insert Top Mount Opening | Single | Non Specified - Single Edge | |||||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Solder Eyelet(s) | 0.125 in | 3.18 mm | Copper Alloy | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Single | Non Specified - Single Edge | |||||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Solder | 0.125 in | 3.18 mm | Copper Alloy | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Single | Non Specified - Single Edge | Card Guides | ||||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Wire Wrap | 0.125 in | 3.18 mm | Copper Alloy | 1 | Top Mount Opening Unthreaded | Single | Non Specified - Single Edge | 0.156 in | 3.96 mm | |||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Solder Wire Wrap | 0.125 in | 3.18 mm | Copper Alloy | 1 | Flush Mount Side Opening Unthreaded | Single | Non Specified - Single Edge | 0.128 " | 3.25 mm | |||
EDAC Inc. | Female | Gold | -40 °C | 105 ░C | 47 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | Green | Polyester Thermoplastic | Cantilever | Wire Wrap | 0.125 in | 3.18 mm | Copper Alloy | 1 | M3 Threaded Insert Top Mount Opening | Single | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-047 Series
47 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
