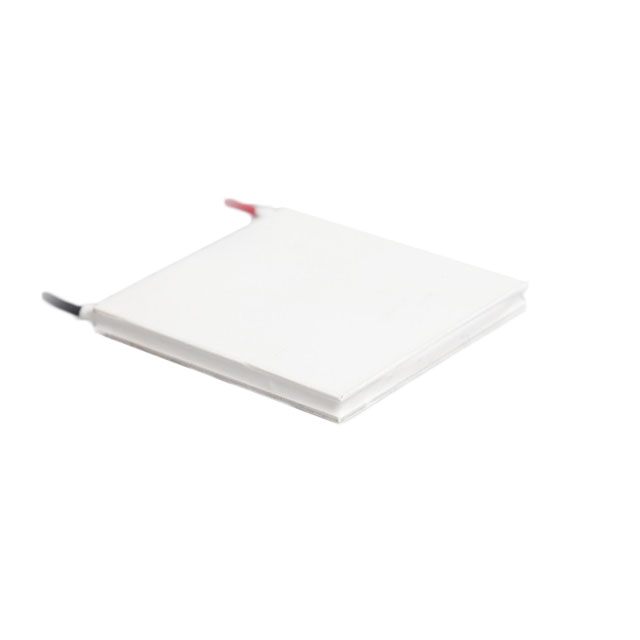

ADV-127-140160-S

Active

European Thermodynamics Ltd

TE MODULE,127 COUPLES,SILICONE

Search across all available documentation for this part.

Active

European Thermodynamics Ltd

TE MODULE,127 COUPLES,SILICONE

Technical Specifications

Parameters and characteristics commom to parts in this series

TE MODULE,127 COUPLES,SILICONE

Part	Current - Max [Max]	Operating Temperature	Number of Stages	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Features	Qmax @ Th	Delta Tmax @ Th	Height [z]
European Thermodynamics Ltd ADV-127-135200-S	4 A	80 °C	1	15.4 V	40 mm	40 mm	Lead Wires, Sealed - Silicone	34.2 W	25 °C, 65 °C
European Thermodynamics Ltd ADV-127-150135-S	8 A	80 °C	1	15.4 V	40 mm	40 mm	Lead Wires, Sealed - Silicone	68.5 W	25 °C, 65 °C	3.5 mm
European Thermodynamics Ltd ADV-127-140170-S	5 A	80 °C	1	15.4 V	40 mm	40 mm	Lead Wires, Sealed - Silicone	42.8 W	25 °C, 65 °C	3.9 mm
European Thermodynamics Ltd ADV-127-140160-S	6 A	80 °C	1	15.4 V	40 mm	40 mm	Lead Wires, Sealed - Silicone	51 W	25 °C, 65 °C	3.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 51.0W @ 25°C 6 A 80°C
